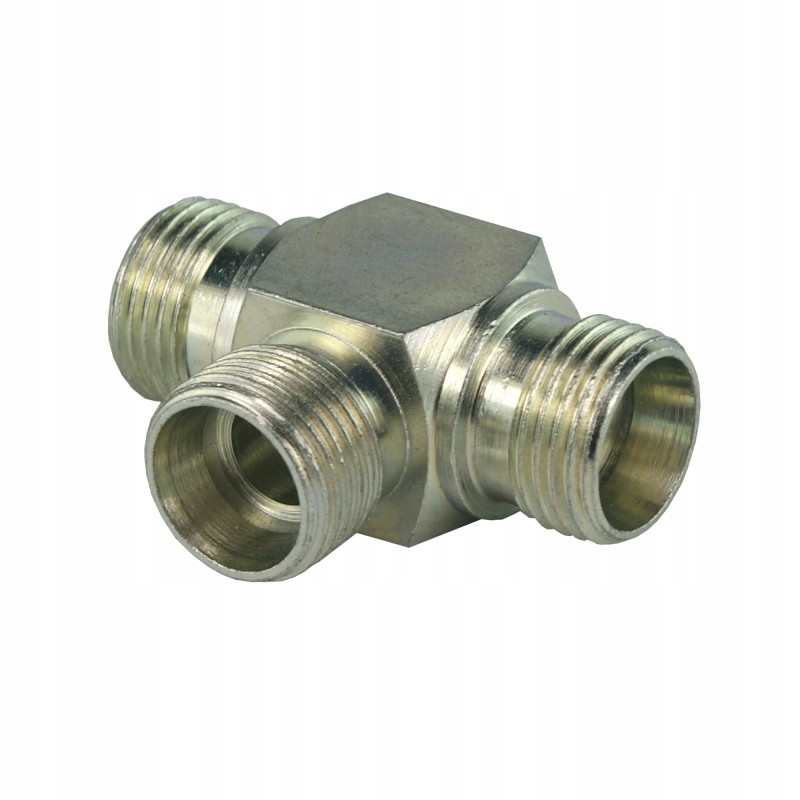

Hydraulic tee connector type bbb 3x 1 2

HYDRAULIC CONNECTOR BBB TEE 1.2'Production:

Hydrolider, symbol: 1.60.57.012.3

Application:

It is widely used in hydraulic systems in agriculture and horticulture , forestry, construction and broadly understood industry.

T-connector, standardized light version with conical clamping self-sealing when tightening. Designed to connect three hydraulic lines or to connect with other connectors with the same conical system.

It does not have rubber seals or places for a seal, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Helpful data:

BSP 1/2' thread diameter measured with a caliper:

Outer diameter [mm ]: 20.5 - 20.9

Inner diameter [mm]: 18.6 - 19.0

Technical data:

Clamping cone angle: 60° (typical for the European standard)

Nominal bore diameter: 11mm

Thread with all sides: external inch BSP 1/2'

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Type liquid: hydraulic oil

Material:

weldable steel, galvanized, corrosion-resistant
