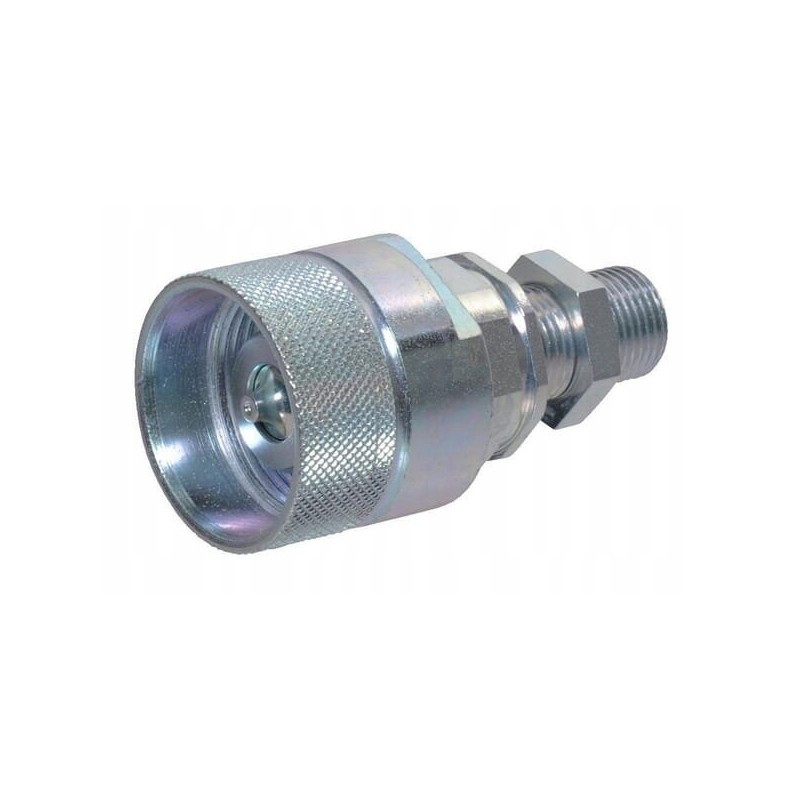

Screwed quick connector 1/2' bulkhead thread M18x1.5 12L - plug Parameters

Part number: SKSM12N18

Unit: piece

Manufacturer: DNP

Possibility to connect under pressure: Yes

Connection: 12L

D [D]: 42 mm

D1 [D1]: 22 mm

Length [L1]: 70 mm

Seal material : NBR / PTFE

Flow max. : 80 l/min

Max. temp: +100 °C

Min. temp.: -30 °C

Nominal pressure: 400 BAR

Suitable for original number: HS102K1218

D1: 22 mm

ISO standard: 14541

BG size: 1/2

Surface treatment: White, passivated

Thread length [L3] : 30 mm

Wrench width [SW]: 36 mm

Specifications

- Self-locking connecting thread

Benefits

- High working pressure

- Protection against unintentional unscrewing due to vibrations Application

- Construction machinery

- Mineral oil based fluids Properties

- Solid workmanship - Low pressure losses - With cut-off on both sides Technical information

- The clutch must be screwed in until it stops - Clutch only possible at pressures up to 50 bar
