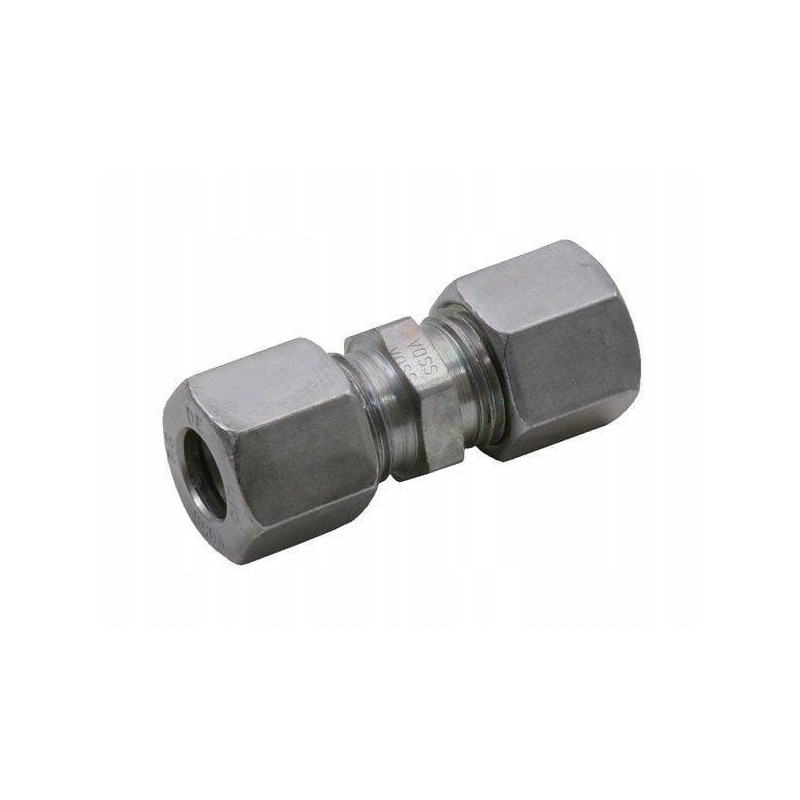

Straight threaded connector 8 ll gv8ll voss

Straight threaded fitting 8 LL Parameters

Part number: GV8LL

Unit: piece

Manufacturer: Voss

Shape: Straight – 2 sides connections

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 8 mm

Connector thread diameter : M12

Connector No. 1 thread pitch: 1 mm

Connector thread type: Metric

Wrench size for connector [S1]: 12 mm

Connector No. 2 Type: Cutting Ring

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 8 mm

Thread Diameter connector no. 2: M12

Connector no. 2 thread pitch: 1 mm

Connector no. 2 thread type: Metric

Wrench size for connector no. 2 [S2] : 14 mm

Distance between connectors [L1]: 12 mm

Pipe diameter: 8 mm

Total length [L]: 35 mm

Cone angle: 24

Max working pressure: 100 BAR

Series: LL

Specifications

- 2S cutting ring

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and excellent performance

- High corrosion resistance

DIN standard

- 2353

- 2401

Surface treatment

- Zinc

- Nickel-plated
