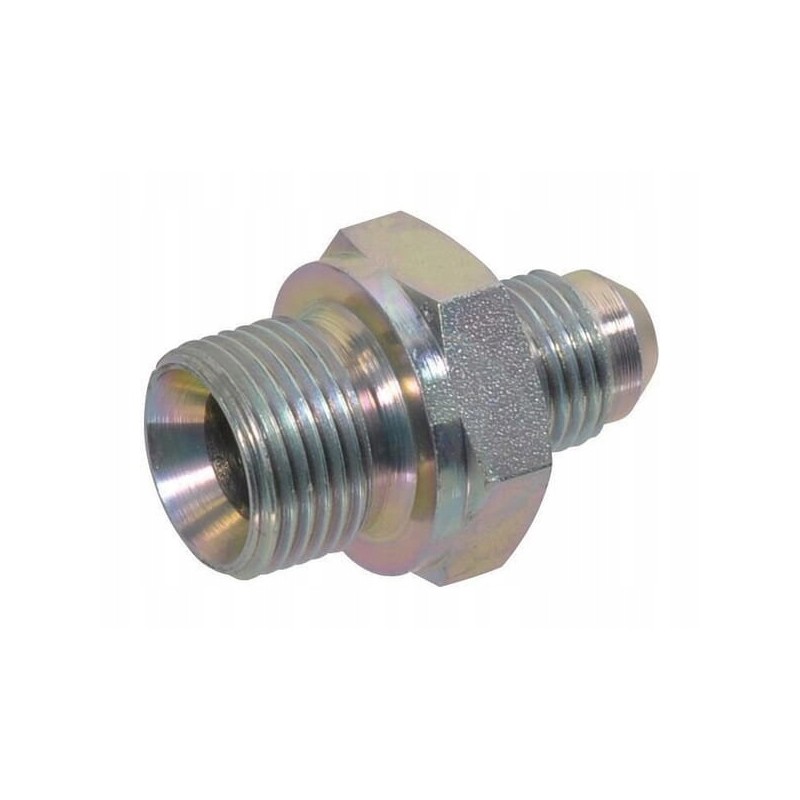

Straight reducing connector 3 4 jicx1 2 bsp rib1208 b
  • Straight reducing connector 3 4 jicx1 2 bsp rib1208 b
  • Straight reducing connector 3 4 jicx1 2 bsp rib1208 b
  • Straight reducing connector 3 4 jicx1 2 bsp rib1208 b

Straight reducing connector 3 4 jicx1 2 bsp rib1208 b

15012578653692
£21.25
Quantity
5 Items

Description
Straight reducing connector 3/4 JIC x 1/2 BSP Parameters

Part number: RIB1208

Unit: piece

Manufacturer: Burnett & Hillman

Shape: Straight - 2 sides of connection

Size [C2]: 14 mm

Connector type: Thread

Connector type - male/female: Male

Connector length [C1]: 16.68 mm

Connector thread diameter [F1]: 1/2 inch

Connector thread type: BSP

Connector [CH] wrench size: 27 mm

Connector No. 2 type: Thread

Connector No. 2 type - male/female: Male

Joint No. 2 Thread Diameter [F2]: 3/4 inch

Joint No. 2 Thread Type: JIC

Pipe Diameter: 12mm

Length [L ]: 42 mm

Max working pressure: 310 BAR

Technical information

- For connections with a 37º (74º) cone, screw connections on the folded edge of the sheet metal with UNF / JIC thread according to SAE I 514, connection thread on the cone side 37º: UNF according to ANSI

Inner diameter [D1 D2]

- 11.09 mm

- 9.93 mm

Product Details
15012578653692
RIB1208
5 Items
New

Data sheet

Manufacturer
Burnett & Hillman
Part Number
RIB1208
Original part number
RIB1208
Replacement part numbers
RIB1208
