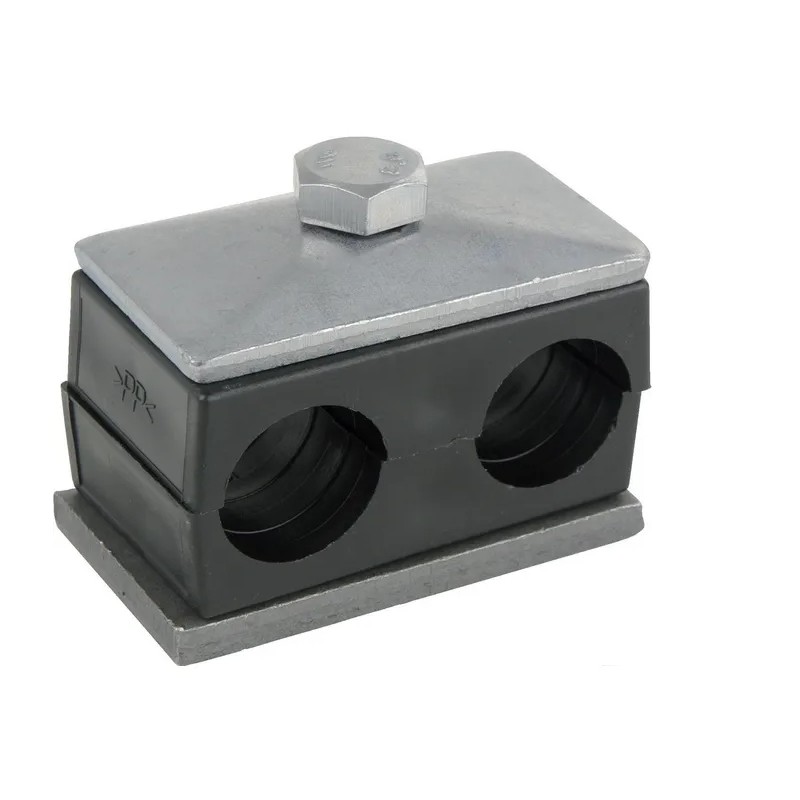

Rs32222p001 double clamp set 22x22 mm
  • Rs32222p001 double clamp set 22x22 mm

Rs32222p001 double clamp set 22x22 mm

15013152179299
Stauff
£17.60
Quantity
5 Items

Description
RS32222P001 Clamp set double 22x22 mm Specifications

Good resistance to UV radiation

Rounded edges

Application

Vehicle construction

Machine construction

Installation construction

Electrical industry

Properties

Internal surface with prestressed ribs

Benefits

Long service life

Elimination of damage or injury

Diameter

22 mm

Consists of

2 halves

Cover plate

Base plate

1 screw

Height

37 mm

Material

Polyethylene

Mounting bracket width

70 mm

Mounting thread diameter

M8

Spacing of mounting holes

36 mm

Screw length

45 mm

Diameter of mounting holes

9 mm

Operating temperature min.

-30 °C

Operating temperature max.

90 °C

Color

Black

DIN standard

3015/3

Product Details
Stauff
15013152179299
RS32222P001
5 Items
New

Data sheet

Manufacturer
Stauff
Part Number
RS32222P001
