Dkm 90 clamping dn12 1 2sn m22x1 5 x10 hydrolider

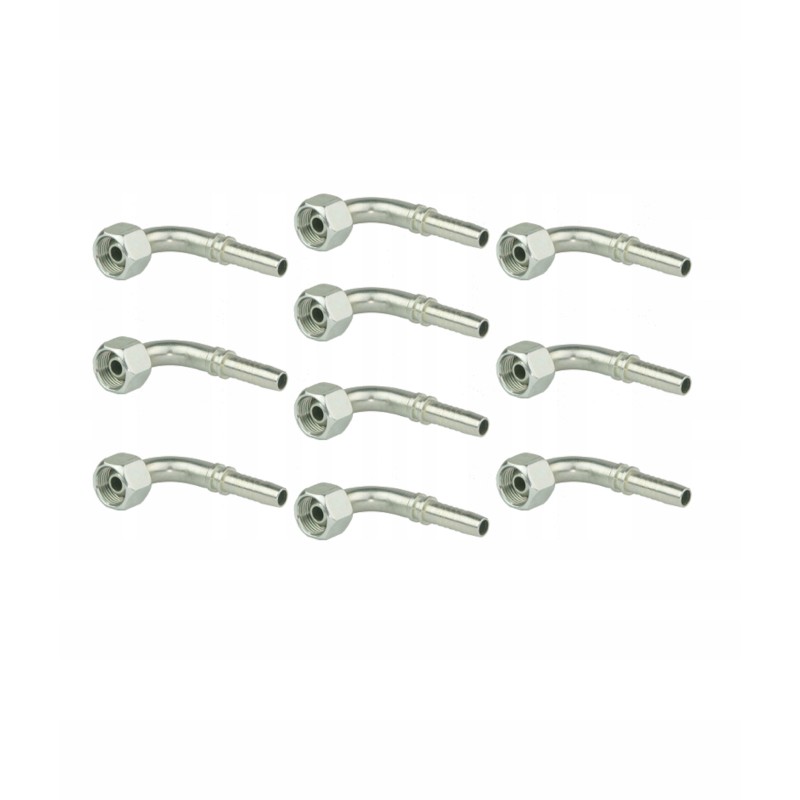

ANGLE HYDRAULIC FITTING DKM-90 M22x1.5 FOR HYDRAULIC HOSE 1SN / 2SN DN12 (13) Production:

Hydrolider, symbol: 4.28.12.022.10

Application:

The fitting is used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry . Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN12 (13) group with single and double braiding. Fits sleeves from the DN12 (13) group with the marking 1SN and 2SN.

Technical data:

Angular ball fitting 90°, metric thread tip 22x1.5, light version compatible with a 60° socket and a sealing ring according to DIN 7631. Made in accordance with standards : PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm. Type A chromate passivation, free of chromium (VI) in accordance with DIN EN 15205. Thanks to the technology used, all our forging elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40 °C to 100°C

Recommended hydraulic hose: DN12 (13) 1SN, DN12 (13) 2SN or other with an internal diameter of 12-13mm

Made in Poland for Agricola Hydraulic Component
