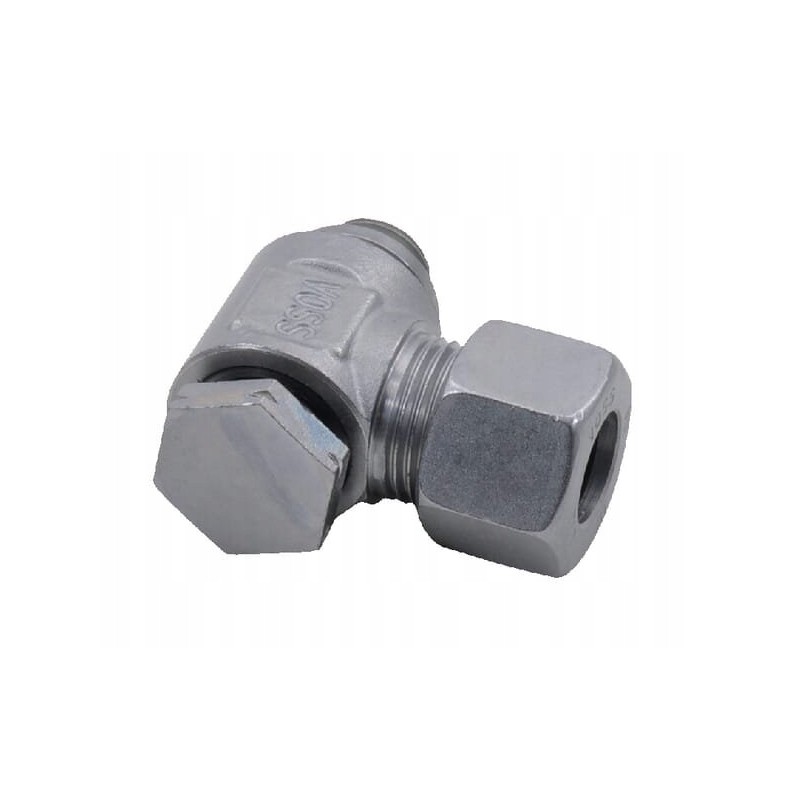

Angled threaded swivel fitting 12l r3 8

Angle swivel threaded fitting 12L R3/8 Parameters

Part number: RSWV12LR38

Unit: Piece

Manufacturer: Voss

EAN: 8719607060844

Shape: Elbow - 2 sides connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 12 mm

Connector No. 1 Thread Diameter: M18

Connector Thread Length: 12 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: BSP

Wrench Size for Connector No. 1: 22.0 mm

Connector No. 2 Type: Banjo

Connector Type No. 2 - Male/Female: Male

Connection No. 2 Thread Diameter: 3/8 inch

Turns per Inch for Connector No. 2 Thread: 19

Connection No. 2 Thread Type: BSP

Connection No. 2 Wrench Size: 24.0 mm

Dimension from axis of the joint to the bottom of the next joint: 16 mm

Pipe diameter: 12 mm

ISO standard: 228

Length: 38.5 mm

Angle: 90 °

Max. working pressure: 400 BAR

Seal material: Metal

Series: L

Dimension from the axis of joint no. 2 to the end of the next joint 33mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
