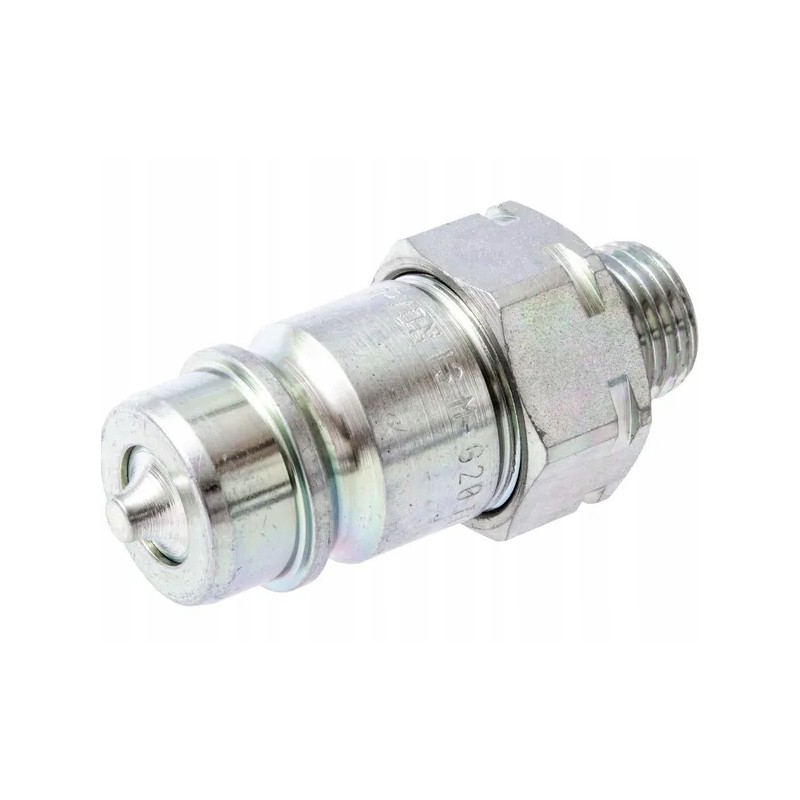

Quick connector plug skp m 1 2 male thread m16x1 5

SKPM12L16 Quick connector plug SKP-M 1/2' external thread M16x1.5 10LApplication

Universal use

Agricultural machinery

Municipal technology

Mineral oil based fluids

Properties

Standard agricultural connector

Push & Pull principle

Breaking function

Shape

Straight - 2 sides of connection

Size (code)

BG 3

Connector type no. 1

Quick connector

Connector type no. 1 - male/female

Male

Connection diameter

20.6 mm

Connector type no. 2

Thread

Connector type no. 2 - male/female

Male

Connection diameter no. 2

10 mm

Thread diameter of connection no. 2

M16

Thread pitch of connection no. 2

1.50 mm

Connection thread type no. 2

Metric

Possibility of connection under pressure

No

ISO standard

7241-1-A

Outside diameter

38 mm

Total length

58 mm

Surface treatment

White passivated

Operating pressure

250 BAR

Operating temperature max.

100 °C

Operating temperature min.

-30 °C

Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Series

10L

Connection type

plug
