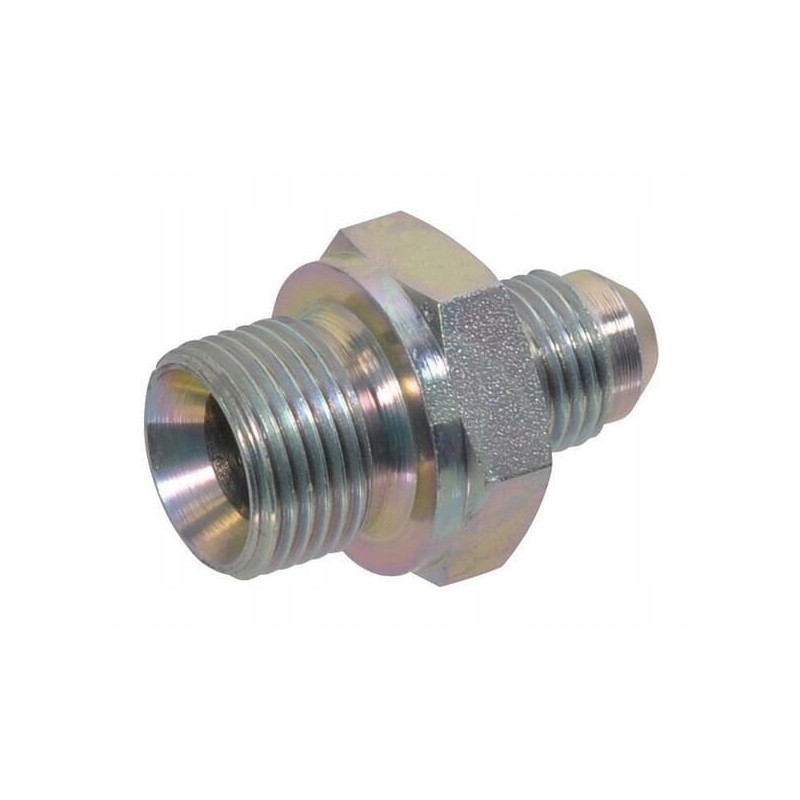

Straight reducing connector 3 4 jicx3 8 bsp rib1206 b
  • Straight reducing connector 3 4 jicx3 8 bsp rib1206 b
  • Straight reducing connector 3 4 jicx3 8 bsp rib1206 b
  • Straight reducing connector 3 4 jicx3 8 bsp rib1206 b

Straight reducing connector 3 4 jicx3 8 bsp rib1206 b

15012578626705
£20.21
Quantity
5 Items

Description
Straight reducing connector 3/4 JIC x 3/8 BSP Parameters

Part number: RIB1206

Unit: piece

Manufacturer: Burnett & Hillman

Shape: Straight - 2 sides of connection

Size [C2]: 12 mm

Connector type: Thread

Connector type - male/female: Male

Connector length [C1]: 16.68 mm

Connector thread diameter [F1]: 3/8 inch

Connector thread type: BSP

Connector [CH] wrench size: 22 mm

Connector No. 2 type: Thread

Connector No. 2 type - male/female: Male

Joint No. 2 Thread Diameter [F2]: 3/4 inch

Join No. 2 Thread Type: JIC

Pipe Diameter: 12mm

Length [L ]: 37.5 mm

Max working pressure: 310 BAR

Technical information

- For connections with a 37º (74º) cone, screw connections on the curl sheet edges with UNF / JIC thread according to SAE I 514, connection thread on the cone side 37º: UNF according to ANSI

Internal diameter. [D1 D2]

- 9.52 mm

- 9.93 mm

Product Details
15012578626705
RIB1206
5 Items
New

Data sheet

Manufacturer
Burnett & Hillman
Part Number
RIB1206
Original part number
RIB1206
Replacement part numbers
RIB1206
