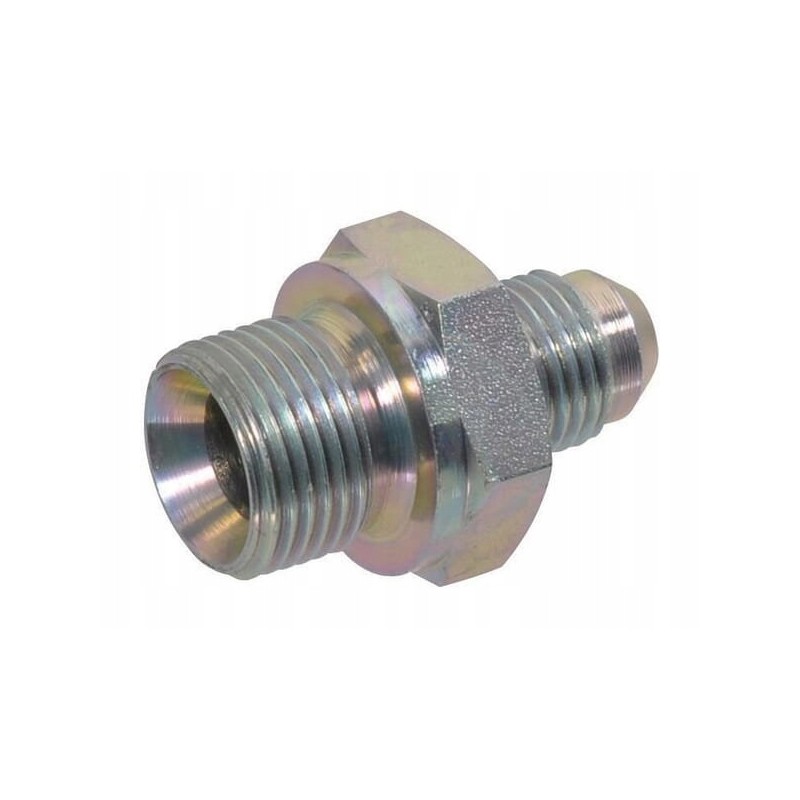

Straight reducing connector 9 16 jicx3 8 bsp rib0906
  • Straight reducing connector 9 16 jicx3 8 bsp rib0906
  • Straight reducing connector 9 16 jicx3 8 bsp rib0906
  • Straight reducing connector 9 16 jicx3 8 bsp rib0906

Straight reducing connector 9 16 jicx3 8 bsp rib0906

15013095659224
£19.89
Quantity
5 Items

Description
Straight reducing connector 9/16 JIC x 3/8 BSP Parameters

Part number: RIB0906

Unit: piece

Manufacturer: Burnett & Hillman

Shape: Straight - 2 sides of connection

Size [C2]: 12 mm

Connector type: Thread

Connector type - male/female: Male

Connector length [C1]: 14.12 mm

Connector thread diameter [F1]: 3/8 inch

Connector thread type: BSP

Connector [CH] wrench size: 22 mm

Connector No. 2 type: Thread

Connector No. 2 type - male/female: Male

Joint No. 2 Thread Diameter [F2]: 9/16 inch

Joint No. 2 Thread Type: JIC

Pipe Diameter: 10mm

Length [L ]: 35 mm

Max working pressure: 315 BAR

Technical information

- For connections with a 37º (74º) cone, screw connections on the folded edge of the sheet metal with UNF / JIC thread according to SAE I 514, connection thread on the cone side 37º: UNF according to ANSI

Inner diameter [D1 D2]

- 7.92 mm

- 7.54 mm

Product Details
15013095659224
RIB0906
5 Items
New

Data sheet

Manufacturer
Burnett & Hillman
Part Number
RIB0906
Original part number
RIB0906
Replacement part numbers
RIB0906
