Hydraulic socket pressure eliminator m20x1 5

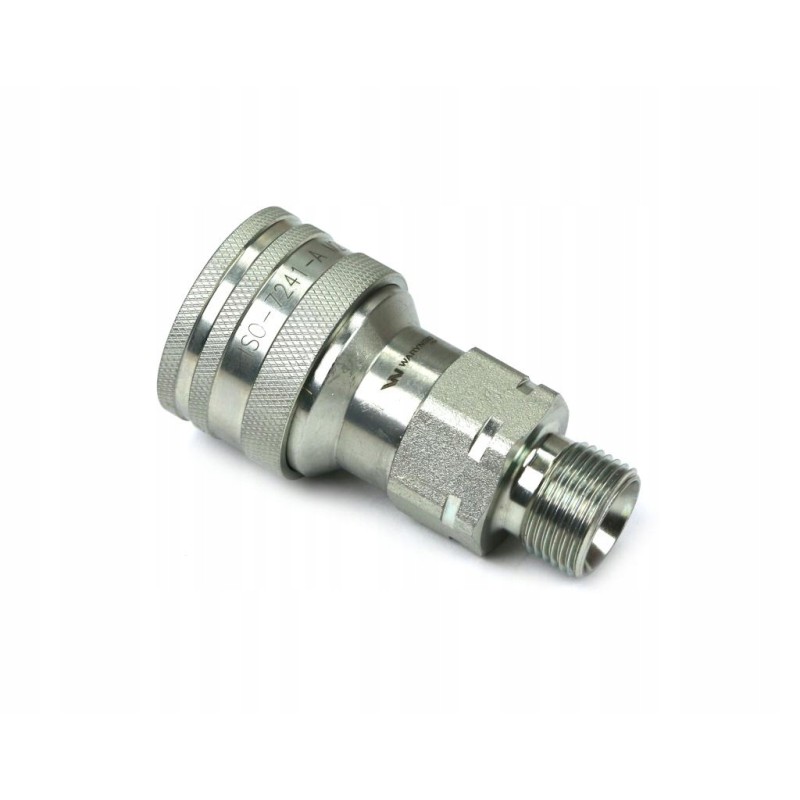

Hydraulic quick connector, socket with pressure eliminator M20x1.5 external thread EURO (ISO 7241-A) Warynski

Hydraulic quick connector, socket with pressure eliminator M20x1.5 external thread EURO (ISO 7241-A) Warynski

Hydraulic quick connector, socket with pressure eliminator M20x 1.5 thread external EURO (ISO 7241-A) Warynski

Hydraulic quick connector, M20x1.5 socket, external thread EURO (ISO 7241-A) with a Waryński pressure eliminator. The pressure eliminator allows the hydraulics to be connected without the need to apply excessive force, ensuring a quick and easy connection process in any situation (static pressure between the two hydraulic systems is released). It is an ideal solution for connecting hydraulics with a very wide range of applications. The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

*Parameters:

*Thread: External M20x1.5

*Standard: (EURO), ISO-7241-A (ISO -A)

* Type: Socket with pressure eliminator

* Cone - thread: 60°

* Max. operating pressure: 25.0 Mpa / 250 bar

* Operating temperature: from -25°C to +120°C

* Fits plugs: WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 910082 0W, WIAM18SWE, WIAM18SZE, WIAM18SZLE, WIAM20SZE, WIAM22SWE, WIAM22SZE, WIAM22SZLE, WIAR12WE, WIAM14SZE, WIAM16SZE, WIAM16SZLE, WIAR12SZE, WIAR12SZ

*Fits cover: RM-GNIA12Z, 5049004EURO

-️ Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The static pressure between the two hydraulic systems is relieved using a pressure eliminator. This means trouble-free connection of quick connectors in lines connected to the supply line in which the pressure eliminator is connected. The pressure eliminator allows you to connect the hydraulics without the need to use excessive force, which ensures a quick and easy connection process in any situation.

* Producer: Waryński
