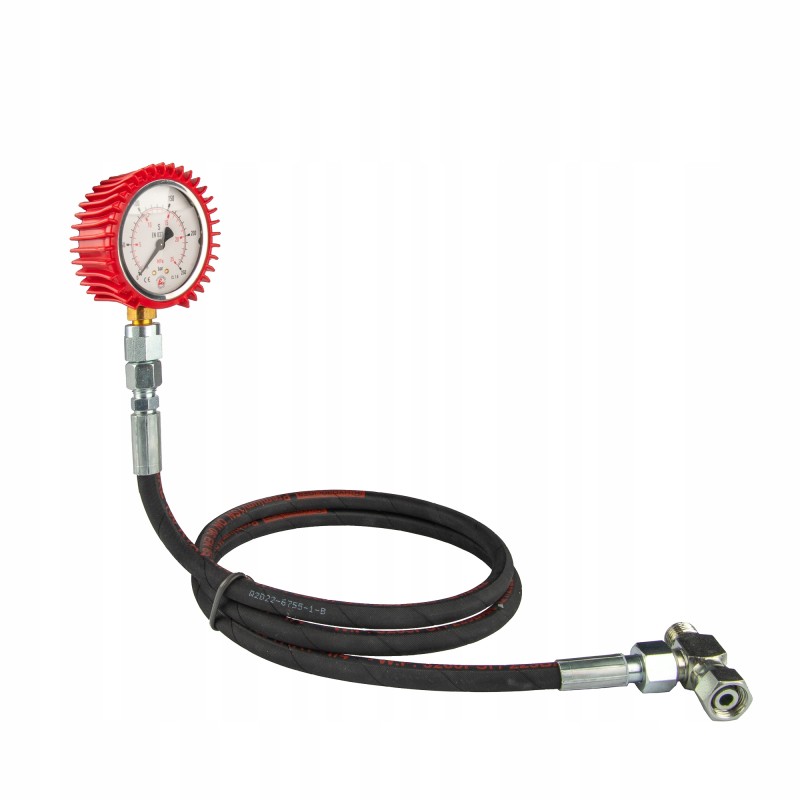

MEASURING SET FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM GLYCERINE MANOMETER WITH 2000mm HYDRAULIC HOSE AND TEE M18x1.5 PRESSURE MEASURING RANGE: 0-250 BAR Set components:
high-pressure glycerine manometer with measurement range 0-250 bar
rubber cover protecting the pressure gauge against damage
connection connecting the pressure gauge with cable
high-pressure hydraulic hose 400 bar, 200 cm long
BBA type tee with M18x1.5 thread
Production:
Original product of the Hydrolider brand, symbol: 1.52.00.723.250.18
Application:
Widely used in hydraulic systems in agriculture and construction and industry.
A set designed to measure oil pressure in closed hydraulic systems where there are conditions to develop hydraulic pressure.
The AB tee allows you to quickly connect to a selected line of the hydraulic system and check the pressure. Just unscrew the cable from the connection anywhere and connect it with a tee.
Technical data:
Pressure measurement range: 0-250 Bar
Clock external diameter: 63mm
Clock connection port thread [BSP]: 1/4'
Operating temperature [°C]: -10 to +50
Accuracy class: 1.6
Quick connector, twisted plug, ISO standard
Quick connector thread: internal M36x1.5
Material
Housing: steel
Viewfinder: glass
