Measuring set 250bar 2m tee 14 hydrolider
  • Measuring set 250bar 2m tee 14 hydrolider
  • Measuring set 250bar 2m tee 14 hydrolider

Measuring set 250bar 2m tee 14 hydrolider

15013218102146
Hydrolider
£58.38
Quantity
5 Items

Description

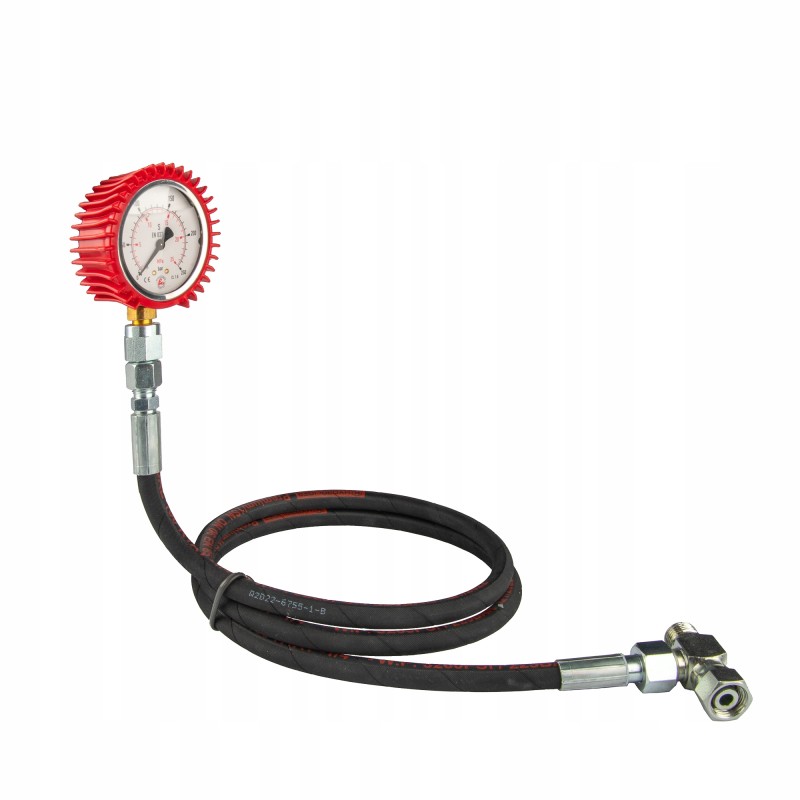

MEASURING SET FOR CHECKING PRESSURE IN THE HYDRAULIC SYSTEM GLYCERINE MANOMETER WITH 2000mm HYDRAULIC HOSE AND TEE M14x1.5 PRESSURE MEASURING RANGE: 0-250 BAR Set components:

high-pressure glycerin manometer with measurement range 0-250 bar

rubber cover protecting the pressure gauge against damage

connection connecting the pressure gauge with cable

high-pressure hydraulic hose 400 bar, 200 cm long

BBA type tee with M14x1.5 thread

Production:

Original product of the Hydrolider brand, symbol: 1.52.00.723.250.14

Application:

Widely used in hydraulic systems in agriculture and construction and industry.

A set designed to measure oil pressure in closed hydraulic systems where there are conditions to develop hydraulic pressure.

The AB tee allows you to quickly connect to a selected line of the hydraulic system and check the pressure. Just unscrew the cable from the connection anywhere and connect it with a tee.

Technical data:

Pressure measurement range: 0-250 Bar

Clock external diameter: 63mm

Clock connection port thread [BSP]: 1/4'

Operating temperature [°C]: -10 to +50

Accuracy class: 1.6

Quick connector, twisted plug, ISO standard

Quick connector thread: internal M36x1.5

Material

Housing: steel

Viewfinder: glass

Product Details
Hydrolider
15013218102146
A1.52.00.723.250.14
5 Items
New

Data sheet

Manufacturer
Hydrolider
Part Number
A1.52.00.723.250.14
Product weight with unit packaging
0.94 kg
