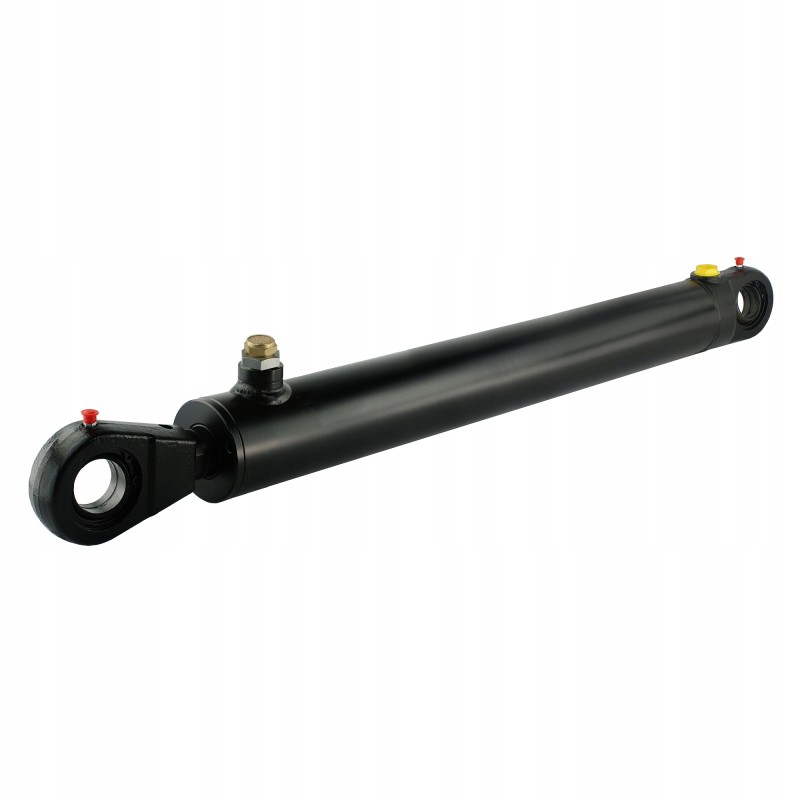

Hydraulic actuator 63 900 u35 l 1182 hydrolider

SINGLE-ACTING HYDRAULIC CYLINDER COMPLETE WITH EARS ON SOCKET BEARINGSProduction:

Original product of the Hydrolider brand, manufacturer's symbols: 1.30.20.025.1, CJF 63/36/900 U35

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The actuator is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

The actuator, if necessary, can also work as a double-sided one. Just unscrew the bleeding mechanism from the hole near the piston rod and screw on the hydraulic hose.

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you can see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Mounting the head from the rod side: screwed on

Type of stuffing box (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Piston (pipe) outer diameter: 73mm

Piston (pipe) inner diameter: 63mm

Piston rod (rod) diameter: 36mm

Diameter of holes for pins: 35mm

Stroke (working movement) of the piston rod: 900mm

Length in the rest state measured in the axes of holes: 1182mm

Internal threads for connections: M22x1.5

Operating parameters:

Maximum allowable operating pressure: 250 bar

Permissible ambient temperature: -40ºC to +60ºC

Permissible oil temperature: -15ºC to +80ºC

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on the change in oil pressure in the hydraulic system (photo):
