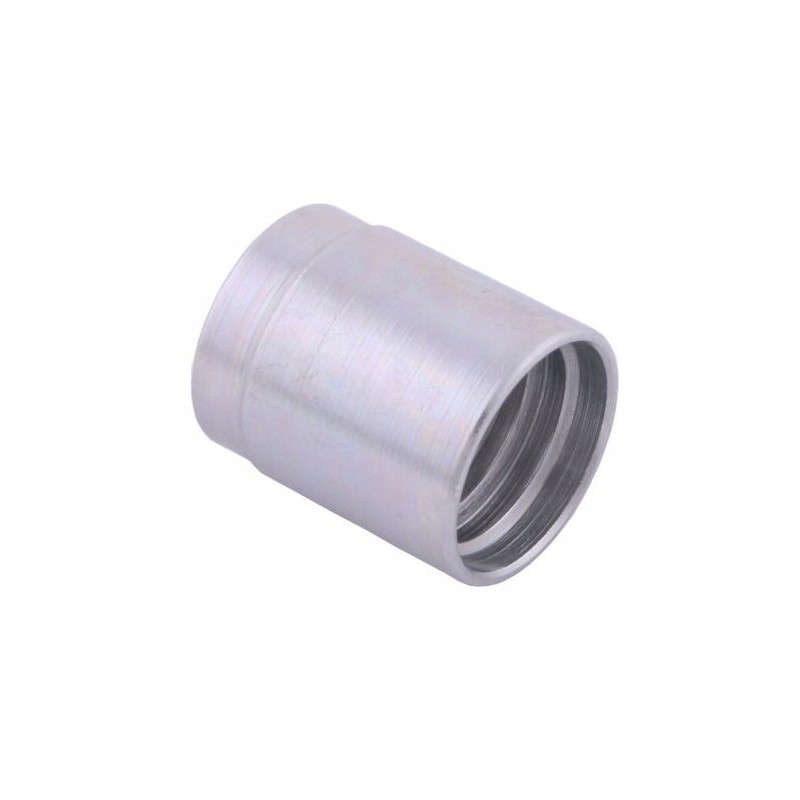

Bushing holder DN 13 2SN Warynski

BUSHING HOSE DN 13 2SN WARYŃSKI W-OP-DN12-2SNT Bushing (holder) DN 12 2SN

for hydraulic hoses and fittings Waryński

Specification:

Type - 2SN Bushing (holder)

Fits - WAZ12SN2W25, WAZ12SN2W50,

W-DKOL-12-15L, W-DKOL-12-16L,

W -DKOL90-12-15L, W-DKOL90-12-16L,

W-DKOL45-12-15L, W-DKOL45-12-16L,

W-CEL-12 -15L, W-CEL-12-16L,

W-DKOS-12-16S, W-DKOS90-12-16S,

W-DKOS45-12-16S, W -CES-12-16S,

W-DKJ-12-3/4, W-DKJ-12-7/8, W-DKJ-12-1 1/16,

W-DKJ90-12-3/4, W-DKJ90-12-7/8,

W-DKJ9012-1 1/16, W-DKJ45-12-3/4,

W-DKJ45-12-7/8, W-DKJ4512-1 1/16,

W-AGJ-12-3/4, W-AGJ-12-7/8 , W-AGJ-12-1 1/16,

W-ZLP-DN12, W-ORFS-12-13/16, W-ORFS-12-1,

W-ORFS-12-1 3/16, W-ORFS9012-13/16,

W-ORFS90-12-1, W-ORFS912-1 3/16,

W-ORFS4512-13/16, W-ORFS45-12-1,

W-ORFS412-1 3/16, W-ORFSAD12-13/16,

W-ORFSAD -12-1, W-ORFSA12-1 3/16,

W-RNM-12-16, W-RNM-12-18, W-RNM-12-20,

W-RNM-12-22, W-RNR-12-1/2, W-DKR-12-3/8,

W-DKR-12-1/2, W-DKR -12-3/4, W-DKR90-12-3/8,

W-DKR90-12-1/2, W-DKR90-12-3/4,

W-DKR45-12-3/8, W-DKR45-12-1/2, W-DKR45-12-3/4,

W-AGR-12-3/8, W- AGR-12-1/2

Outer diameter before crimping (sleeve) - 29 mm

Hose type - DN12-2SN (2-braided) Waryński

Outer diameter of the crimped hose - 21.0 mm

Crimping diameter (approximate) - 23.8 mm

Group - Hydraulic fittings

Application:

Bushings (holders) have a wide range of applications

in the process of crimping (crimping) hydraulic lines

of specific lengths

in industrial and other agricultural machines.

They are resistant to very high pressures

during difficult working conditions.

Crimping: hydraulic hoses are manufactured

according to the EN-853 standard, which specifies the thickness tolerance

of the hose rubber (external dimension), which causes

diameter after crimping may differ from that shown in the table. The above crimping size data

is for reference purposes only.

They were determined based on the given diameter

of the outer diameter of the hose before crimping and the diameter of the sleeve

(frames). The adopted crimping tolerance is ±0.1mm.
