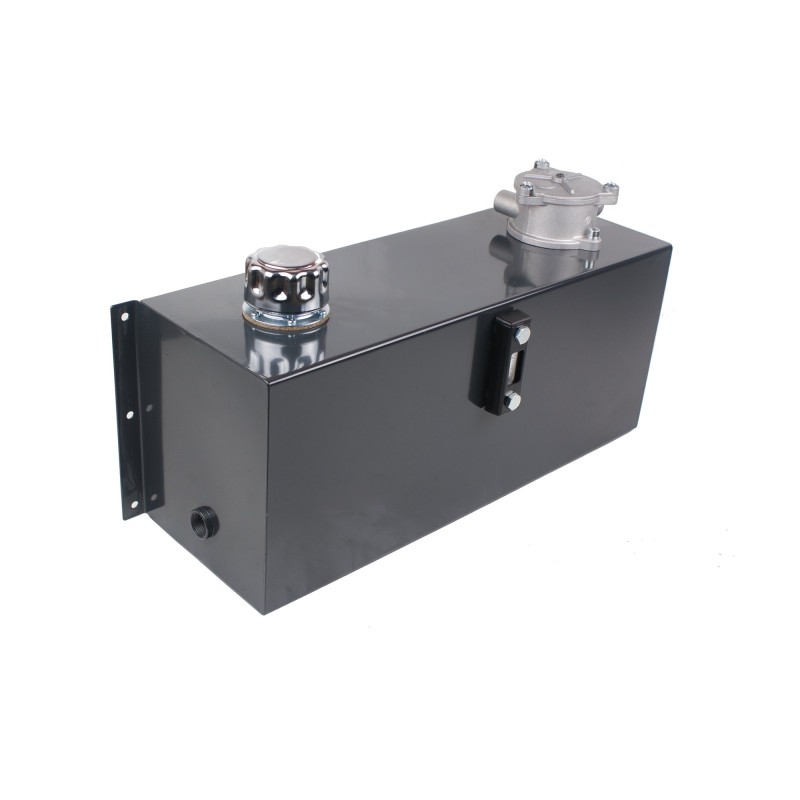

Hydraulic oil tank 25l accessories

UNIVERSAL METAL OIL TANK MOUNTED TO THE WALL WITH ADDITIONAL ACCESSORIESProduction:

Original product of the Hydrolider brand, symbol: 1.41.03.025

Application:

It is widely used in hydraulic systems in agriculture , horticulture, forestry, construction and broadly understood industry.

Universal oil tank mounted on the wall, intended for all types of machines and devices with a hydraulic system that requires a specific amount of oil.

Tanks in the hydraulic system also act as a radiator, dissipating heat. An appropriately sized tank enables long and continuous operation of the system without the risk of oil heating and work stoppages.

Technical data:

Produced on a professional production line, checked for leaks. Very nice and aesthetic appearance, powder-coated external walls

Capacity: 25 liters

Holes:

Return in the filter - BSP 1' internal thread

Suction left and right to choose from - BSP 3/4' internal thread

Assembly - smooth 6x fi 10.5mm

Additional accessories:

Filter return valve from the RFM series, mounted directly to the tank. Possibility to connect a pressure gauge. It has replaceable cellulose inserts and a bypass valve set to 1.5bar. Max flow 70L/min, filtration 25µ. Connection port BSP 1' internal thread

Fill plug with filter mesh and air vent. Mounted directly to the hole in the tank. Mounting: 5x M5 - FI 73mm. Flow: 550 L/min - oil with a density of 30 CST (equivalent to HL 30) Filtration: 10µ, opening in the tank: 51mm, strainer dimensions: 50 × 80 Sealing: plug

sink plug, has a sealing O-ring and a strong magnet catching all metal filings from the hydraulic system. BSP 3/4' thread, smooth round head, screwed on with an 'IMBUS' key.

Oil level indicator with a thermometer, shows the oil level and temperature. Mounting to the tank with two screws with M10x1.5 thread (included). The spacing of the mounting screws is 76mm.

Important!!!

Agricola sets have been designed in such a way that they can be easily assembled by yourself. Due to the safety of the goods during transport and restrictions resulting from the regulations of courier companies, the set is sent untwisted.
