Ges connection 3 8 12s m20x1 5

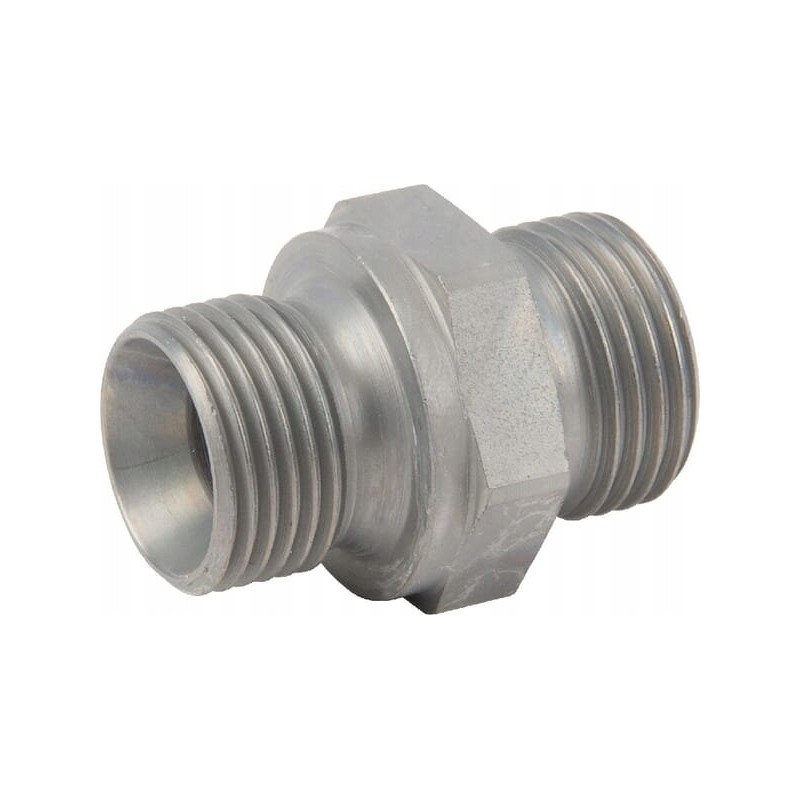

GES connection 3/8' - 12S M20x1.5 Parameters

Part number: GES12SR38ACH60

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides of connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 12 mm

Connector No. 1 thread diameter: M20

Connector thread length: 12 mm

Connector No. 1 thread pitch: 1.50 mm

Type connector thread: BSPP

Connector type no. 2: Cutting ring

Connector type no. 2 - male/female: Male

Connection thread diameter no. 2: 3/ 8 inch

Number of turns per inch of thread for connector no. 2: 19

Type of thread for connector no. 2: BSPP

Wrench size for connector no. 2: 22.0 mm< p>

Pipe diameter: 12 mm

DIN standard: 2401

Inner diameter: 8 mm

Outer diameter: 22 mm

Length: 36.5 mm

Surface treatment: Zinc, Nickel-plated

Max working pressure: 250 BAR

Tightening torque max. .: 80 N·m
