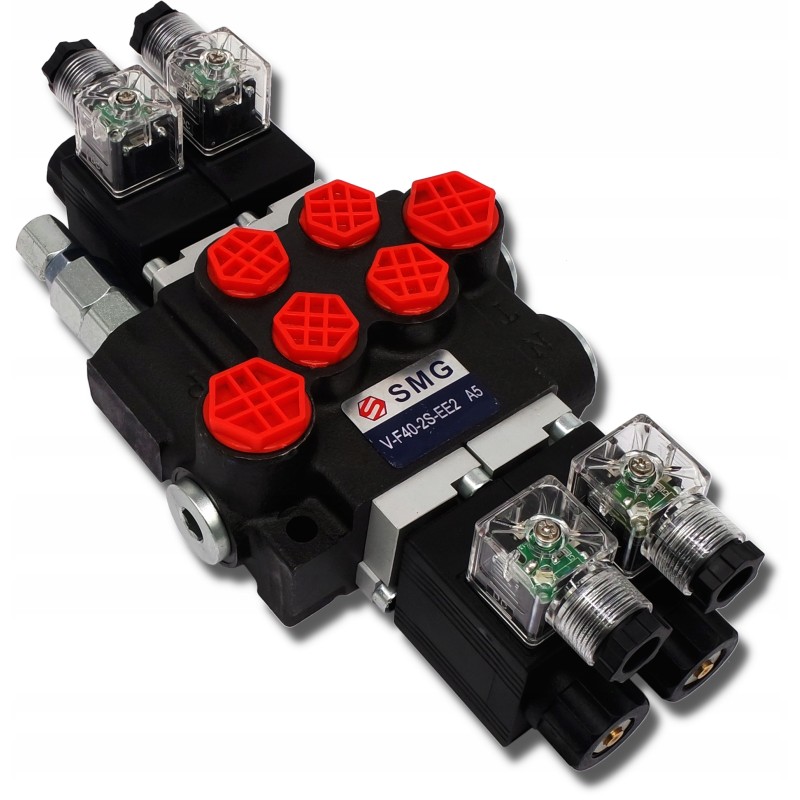

Hydraulic distributor 2 sec 40l electric 24v

2-section electric hydraulic distributor 24V with an oil flow of 40L/min SKRAW MET CODE: [3243] Manufacturer: SM-G (SKRAW MET GROUP) Universal distributor, used in various types of machines such as: Cyclops, Tury, Loaders, Plows, Forklifts and derivatives.

The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Electrical coils with plugs are included with the distributor.Distributor has a safety valve.nominal voltage: 24V

oil flow: 0 - 40 l/min

recommended oil filtration level: 10 - 15 µ

oil temperature : from -20°C to +80°C

ambient temperature: from -40°C to +60°C

version: cast steel valve

Pressure range: Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

Overflow valve: Factory set to 180Bar

Possibility of self-adjustment, full turn change by 30Bar.

Connection: Power supply (P) BSP 1/2''

Return (T) BSP 1 /2''

Output to 3/8'' BSP sections

Oil type: Mineral oil-based hydraulic oil

Control 2x Three-position slider (1 - 0 - 2) it returns to the neutral position on the spring (after cutting off the power supply)

Position 0 neutral (power supply to the coils CUT OFF) the actuator piston rod is standing - the oil goes to the overflow.

Position Working position 1 (power supply to the first coil), the actuator piston rod extends.

Working position 2 (power supply to the second coil), the actuator piston rod retracts.

Inputs/outputs: P1 / P2 - oil supply T1 / T2 - oil return A1-A2 / B1-B2 - outputs for actuatorsN - pressure output (for transmitting pressure to distributors connected in series - requires a pressure sleeve)Electrical plugs are connected to the distributor coils using three pins. All additional elements, i.e. .: coil plugs, joysticks and control panels, can be purchased on our other auctions. Technical drawing and diagram of the distributor
