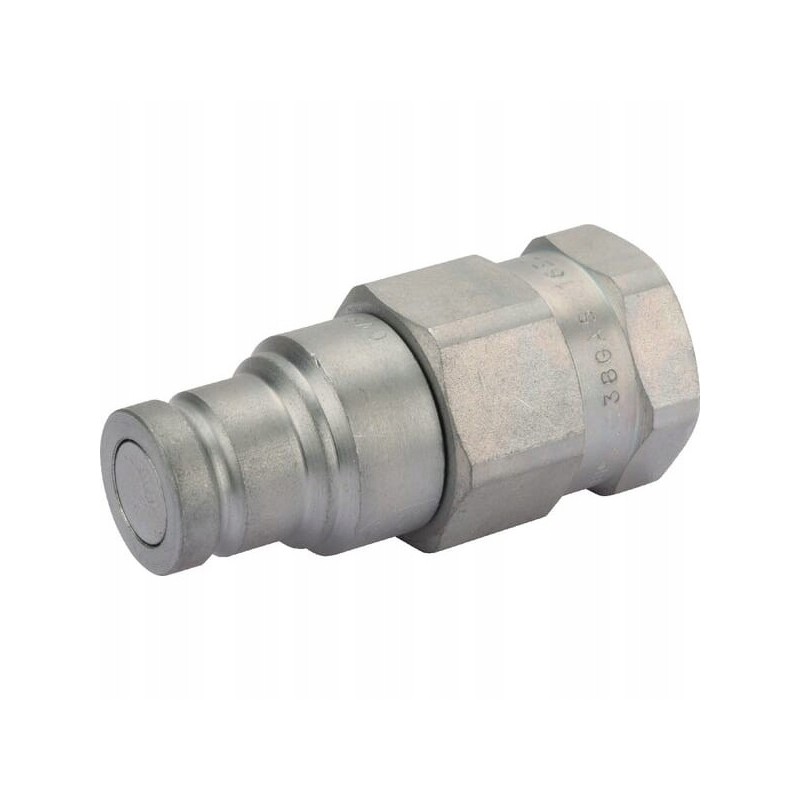

Flat quick connector ffh plug 3 8 internal 3 8 bsp

Flat quick connector FFH plug 3/8 internal thread 3/8 BSP INDEX: FFH0638GASM

Material: Carbon Steel, Carbon Steel

Specifications: - One-hand connection- With special flat valve- Protection against accidental disconnection, - One-hand connection- With special flat valve- Protection against accidental disconnection

Benefits: - Easy operation- Minimum degree of leakage - Connection without air inclusions, - Easy operation - Minimal degree of leakage - Connection without air inclusions

Properties: - Highest corrosion resistance - With cut-off on both sides - Induction hardening in places exposed to rapid wear - Cannot be connected under pressure, - Highest corrosion resistance - With double-side shut-off - Induction hardening in places exposed to rapid wear - Cannot be connected under pressure

Valve type: Flat, Flat

Shape: Straight - 2 sides of the connection, Straight - 2 sides of the connection

Application: - Can be used in areas ecologically sensitive - Hydraulic tools - Construction and agricultural machinery - Shipbuilding - Mineral oil-based fluids, - Can be used in ecologically sensitive areas - Hydraulic tools - Construction and agricultural machinery - Shipbuilding - Mineral oil-based fluids

Size: 10mm, 3 /8inch

Outer diameter: 33mm, 1.3inch

ISO standard: 16028, 16028

Series: FFH, FFH

Connection diameter: 19.7mm, 19.7mm

Surface treatment: Zinc

Nickel-plated, Zinc

Nickel-plated

Total length: 68mm, 2.69inch

Seal material: Nitrile rubber [NBR], Nitrile rubber [NBR]

Weight: 230.8g, 230.8g

Working pressure: 50BAR, 50BAR

Connector type No. 2 - male/female: Female, Female

Possibility of connection under pressure: No, No

Max operating temperature: 125°C, 125°C

Minimum operating temperature: -25°C, -25°C

Type of quick connector lock: Balls around the circumference, Balls around the circumference

Connection method : Press to connect, Press to connect

Disconnect method: Sleeve offset, Sleeve offset

Connector type no. 2: Thread, Thread

Connection thread diameter no. 2: 3/8 inch, 3/8 inch

Size (code): BG 2 , BG 2

Type of thread of connection no. 2: BSPP, BSPP

Number of turns per inch of thread of connection no. 2: 19, 19

Flow at 2 bar pressure: 350l/min, 350l/min

Type of connection no. 1: Quick coupling, Quick coupling

Connector No. 1 Type - Male/Female: Male, Male

Connector No. 1 Key Size: 30mm, 1.18 inch

Connector No. 1 Diameter: 0.78 inch, 0.78 inch
