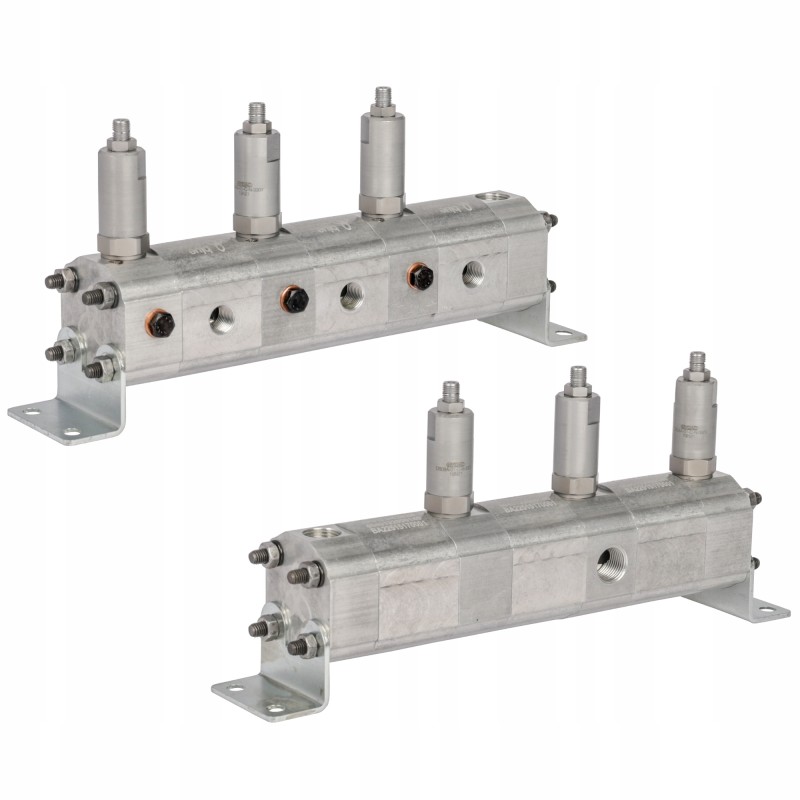

PRECISION GEAR OIL DISTRIBUTOR 1 INPUT - 3 OUTPUTS WITH EQUALIZING VALVES TO CLEAR ERRORProduction:

Original product of the Blue Ascend Hydraulics brand, symbol: 1.22.10.3.43.1.2

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

A precise gear divider, designed to equally divide the main oil stream into three equal streams. Designed for devices and machines that require a precise division of the oil stream regardless of the inlet pressure and the load of operating receivers such as engines or actuators.

Principle of operation:

The divider also works precisely with oil flowing in the opposite direction. The compact design does not require much space and offers a wide range of applications. Mainly used to control differently loaded hydraulic actuators or hydraulic motors working concurrently, and their equal operation is a technical priority.

Equalizing reset valves, mounted on each section of the divider, allow the error to be reset after each completed cycle of actuators or motors . The divider with error resetting valves is recommended for machines in which actuators or motors operate in a large number of cycles, where there is a risk of accumulating errors in the division of the oil stream.

Technical data:

Number of channels inlet IN: 1

Number of outlet channels OUT: 3

Absorption capacity of a single section: 4.3 cm3/rev

Inlet flow range: from 15.6 up to 37.5L/min

Capacity on all outputs in the range: from 5.2 to 12.9L/min

Maximum concurrency with reset valves: 100%

Error compensation: active reset valves equalizing after each completed cycle

Maximum pressure in continuous operation: 220 bar

Maximum pressure in momentary operation: 280 bar

Pressure range of equalizing valves: 70 - 210 bar

Factory setting of equalizing valves: 150 bar

Maximum speed: 3000 rpm

Minimum speed: 1200 rpm/ min

Recommended ΔP (pressure difference on individual sections) >, 40 bar

Below are graphic diagrams of the gear divider:

TABLE WITH PARAMETERS OF THE ENTIRE SERIES OF PRECISION GEAR DIVIDER GROUP 10:
