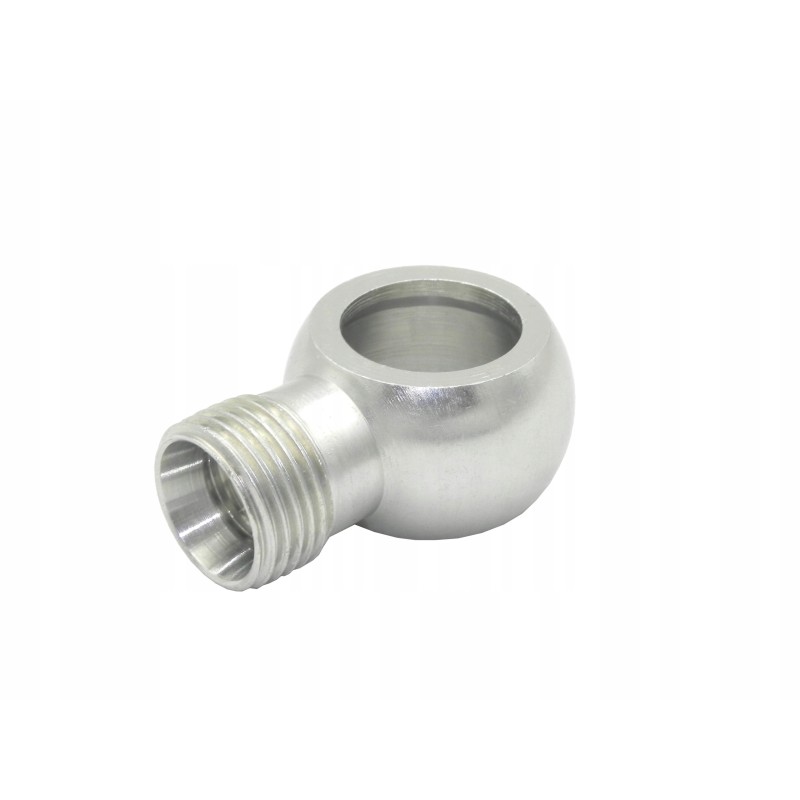

Banjo eyelet hydraulic connector m22x1 5 15l 1 2

BANJO HYDRAULIC EYELET CONNECTOR M22x1.5 15L MESH: 1/2'Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Fittings eyelets (eyelets) with external thread intended for connection to a hydraulic conduit. This type of connectors can be easily and quickly tightened to a regular hydraulic hose with a nut, thus obtaining an eyelet terminal. Eyelets are used in places where we have limited possibility of using an ordinary elbow or end (where there is very little space). We also have overflow eyebolts intended for eyelets in other auctions.

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Cable side thread: external metric 22x1.5 15L

Mesh: BSP 1/2''

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate
