Hydraulic tee connector 3x unf 1 1 16 sae jic
  • Hydraulic tee connector 3x unf 1 1 16 sae jic
  • Hydraulic tee connector 3x unf 1 1 16 sae jic

Hydraulic tee connector 3x unf 1 1 16 sae jic

15010425315494
£20.00
Quantity
5 Items

Description

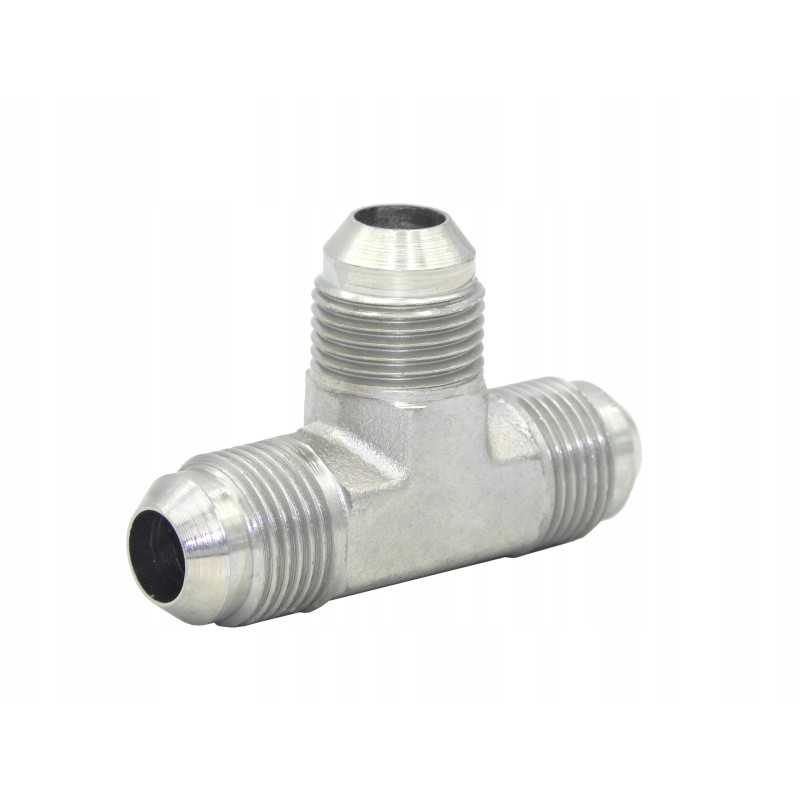

HYDRAULIC TEE CONNECTOR 3x UNF 1.1/16 Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Tee connector, standardized light version with a conical self-seal when tightening. Designed to connect three hydraulic lines or to connect with other connectors with the same cone system.

Technical data:

Thread on all sides: external UNF 1.1/16

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

weldable, galvanized, resistant steel against corrosion

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We issue invoices

We invite you to cooperate

Product Details
15010425315494
T U1.1/16
5 Items
New

Data sheet

Manufacturer
Perfect Hydraulic
Part Number
T U1.1/16
