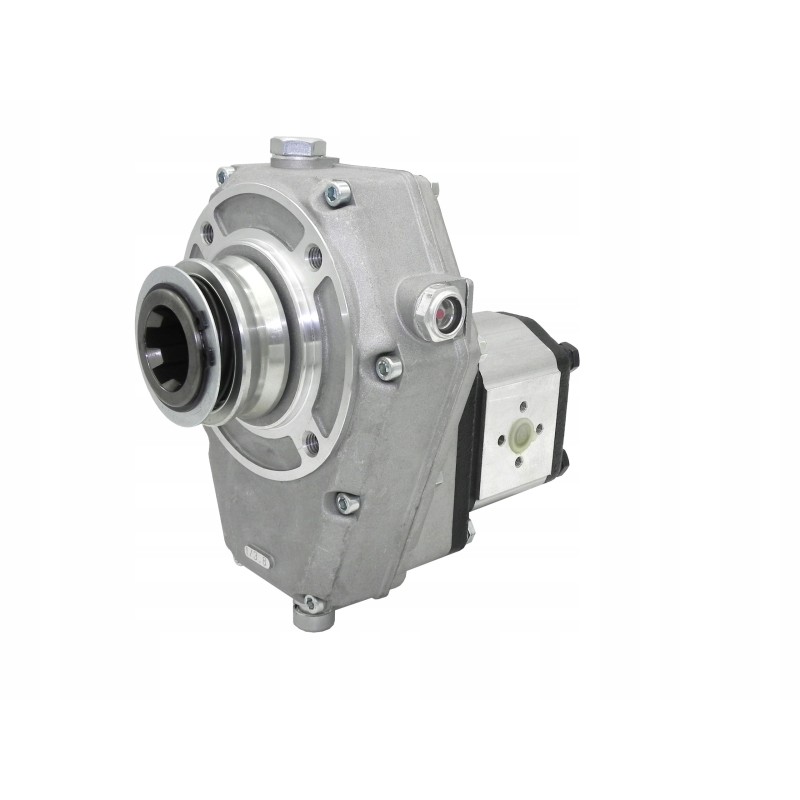

8l pump, small gear, female multiplier

SMALL 'MINI' MULTIPLIER IN A SET WITH A HYDRAULIC PUMP Set includes:

multiplier 1:3.8

gear pump 4 cm3

connecting clutch

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

A compact set, ideal for small and medium-sized forestry and construction machines, tractors and others with a PTO shaft at the output. The small gear allows the set to be installed in hard-to-reach places and on tractors and machines that have little space to install the gear.

Used wherever the original hydraulic pump installed in the machine is not strong and efficient enough or when an additional, new hydraulic system is needed to control the newly installed equipment.

Technical data of the set:

The gearbox is mounted on the PTO shaft using a latch, this solution makes it quite quickly mount or dismount if it turns out that we need the PTO for another machine.

Technical data of the transmission:

Transmission ratio: 1:3.8 Max power: 10 kW

Fits a typical 1.3/8' PTO shaft

RPM speed: max 540 rpm

It has a viewfinder to check the gear oil level.

Possibility to work with pumps of the second group

Material: aluminum body, steel gears

Requires filling with gear oil

When used for the first time, to increase the service life of the gear , it is recommended to change the oil after the first 50 operating hours.

Technical data of the pump:

Geometric volume: 4 cm3/rev

Direction of rotation: right

Maximum rotational speed: 4000 rpm

Efficiency of the set:

The efficiency depends on the revolutions of the PTO shaft to which the set is connected. The higher the PTO revolutions, the more efficient the pump.

Efficiency of the set in l/min relative to the revolutions on the PTO shaft:

220 rpm on the PTO efficiency 3L/min

320 rpm on PTO, capacity 5L/min

430 rpm on PTO, capacity 7L/min

540 rpm on PTO, capacity 8L/min
