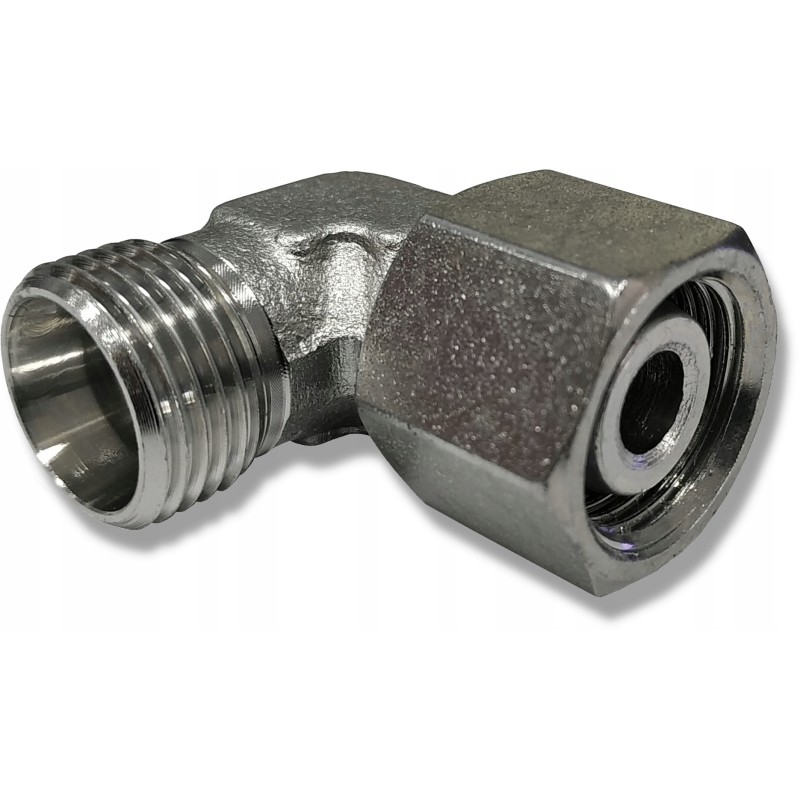

Elbow connector with nut 18 18 ab 90, adjustable

AB 90° hydraulic connector - elbow M18x1.5 - M18x1.5 12LKOD SKRAW MET: [1823] Manufacturer: SM-G (SKRAW MET GROUP) Elbow connector in a standardized light version with a self-sealing cone when tightened.

On the connection side there is an ED seal, which fully seals the system.

Due to the lack of a rubber ED seal and no space for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. This is done using connections that can be purchased at our other auctions.

Application: Used to connect the main components in the hydraulic system (e.g. pump, actuator or distributor) with hydraulic lines.

It is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and industry in general.

Technical specifications: Clamping cone angle: 24° ( typical for the Polish standard)

Nominal diameter of the passage: 7 mm

M1 thread: external metric M18x1.5

M2 thread: internal metric M18x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Fluid type: hydraulic oil

Connector version: light

Material: weldable steel, galvanized, corrosion-resistant
