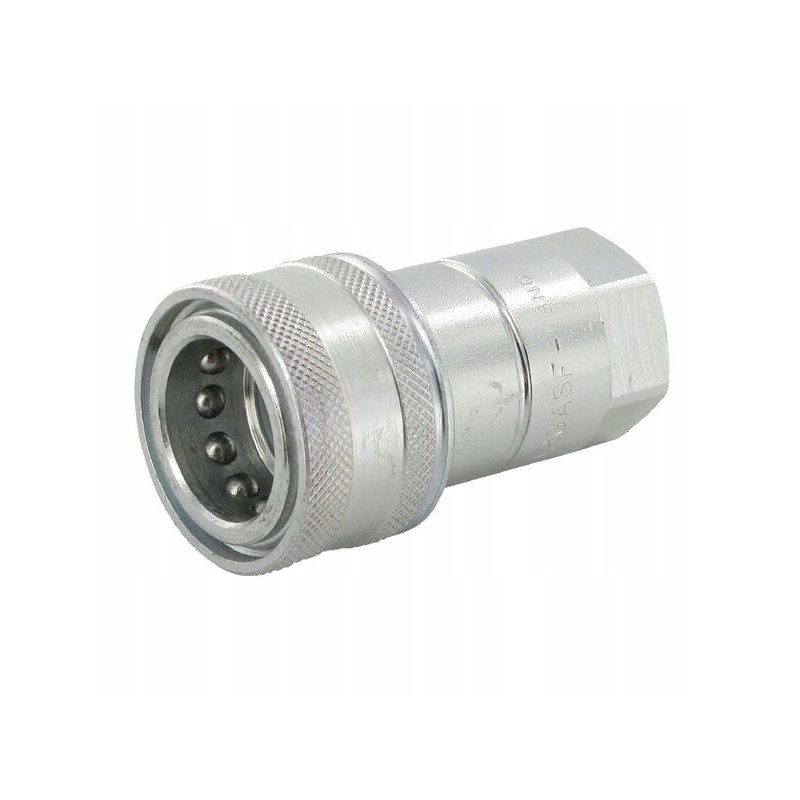

Quick connector 1 2 socket internal thread 1 2 bsp

1/2 quick connector, socket, 1/2 BSP internal thread INDEX: 4NV12GASF

Length: 66mm

Material: Carbon steel

Features: - Axial rearward actuation of the locking sleeve (single-sided action) - No break function - Can be connected under residual pressure

Valve type: Poppet shape

Shape: Straight - 2 sides of connection

Application: - Universal application - Agricultural machinery - Municipal technology - Viticulture - Mineral oil based fluids

Size: 12.5 mm

Outer diameter: 38 mm

ISO standard: 7241-A

Series: 4NV

Connection thread diameter: 1/2 inch

Connection diameter: 38mm

Surface treatment: White passivated

Connector thread type: BSP

Total length: 88 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 251g

Working pressure: 250BAR

Connector type no. 2 - male/ female: Female

Possibility of connection under pressure: Yes

Max operating temperature: 100°C

Min operating temperature: -30°C

Quick connector lock type: Balls around the circumference

Connection method: Sleeve displacement

Disconnection method: Sleeve displacement

Connector type No. 2: Thread

Thread diameter of connection No. 2: 1/2 inch

Size (code): BG 3

Thread type of connection No. 2: BSPP

Number of threads per inch of thread of connection No. 2: 14

Flow at 2 bar pressure: 75l/ min

No.1 Connector Type: Quick Connector

No.1 Male/Female Connector Type: Female

No.1 Connector Wrench Size: 27mm
