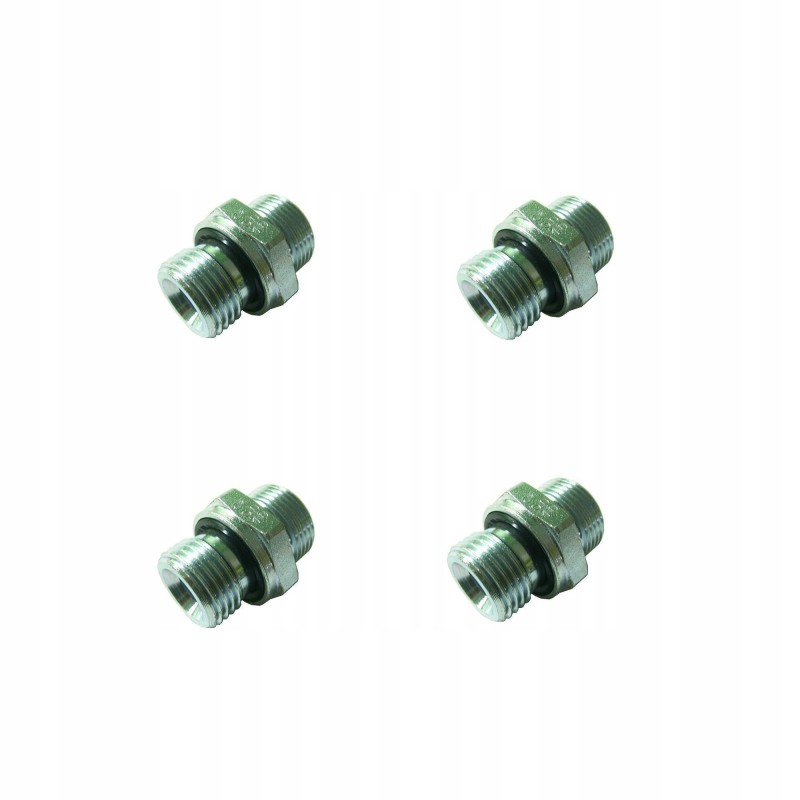

Connectors, nipples for orbitrol, 4 pcs, m22x1 5

ORBITROL CONNECTION SET 1/2'-22X1.5 Production:

Original product of the Hydrolider brand, symbol: 1.06.11.006

Application:

It has a wide range of applications in systems hydraulics in agriculture, horticulture, forestry, construction and broadly understood industry.

The connections fit all types of orbitrols (ON, CN, LS), recommended for systems with a maximum flow of up to 50 L/min.

Technical data:

Connections have a rubber seal.

Threads on the orbitrol side: 1/2' (with seal)

Threads on the cable side, metric: 22x1.5

Material: corrosion-resistant galvanized steel

Helpful data:

BSP thread diameter 1/2' measured with a caliper:

Outer diameter [mm]: 20.5- 20.9

Inner diameter [mm]: 18.6 - 19

Thread diameter M22x1.5 measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6
