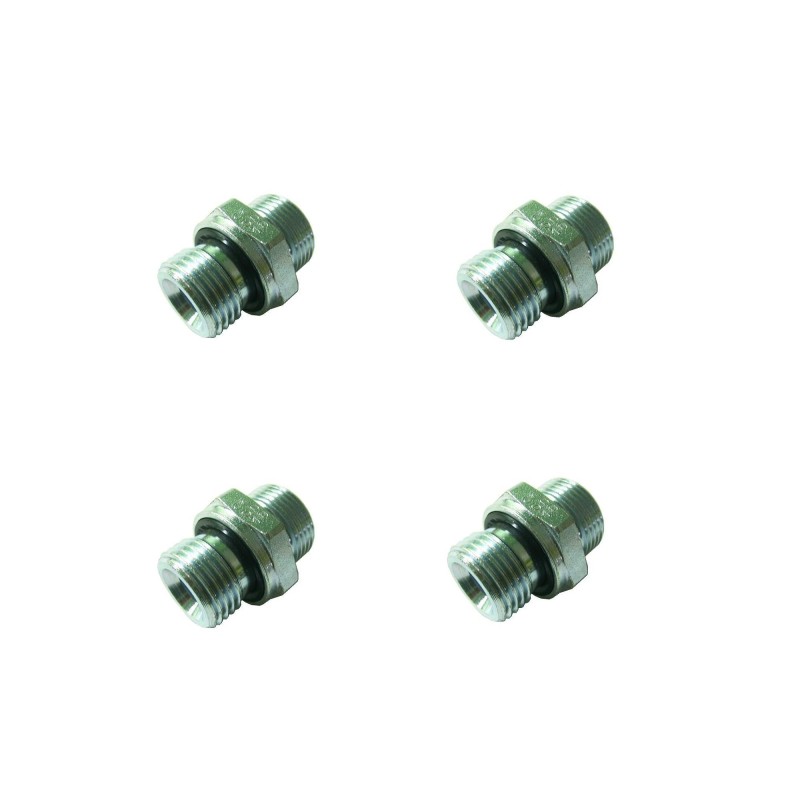

Set of connections for orbitrol m18x1 5 hydrolider

ORBITROL CONNECTION SET 1/2'-18X1.5 Production:

Original product of the Hydrolider brand, symbol: 1.06.11.005

Application:

It has a wide range of applications in systems hydraulics in agriculture, horticulture, forestry, construction and broadly understood industry.

The connections fit all types of orbitrols (ON, CN, LS), recommended in systems with a maximum flow of up to 30 L/min.

Technical data:

Connections have a rubber seal.

Threads on the orbitrol side: 1/2' (with seal)

Threads on the cable side, metric: 18x1.5

Material: corrosion-resistant galvanized steel

Helpful data:

BSP thread diameter 1/2' measured with a caliper:

Outer diameter [mm]: 20.5- 20.9

Inner diameter [mm]: 18.6 - 19

Thread diameter M18x1.5 measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6
