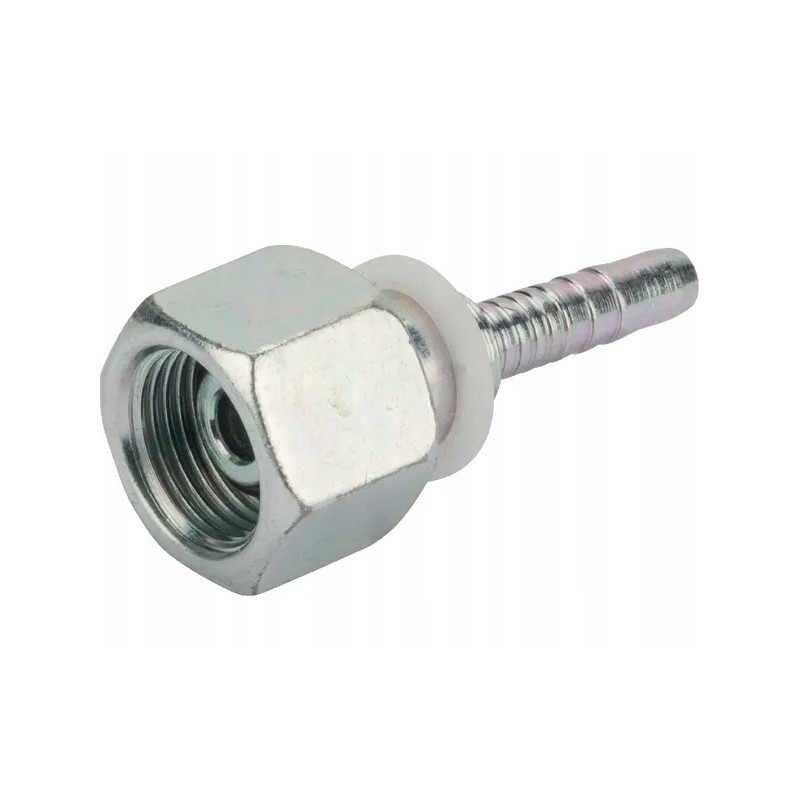

Pf66 tip dn06 3 8 bsp

PF66 Fitting DN06-3/8 BSPProduct details

O-ring

Includes

Fittings

O-ring< p>

Cone angle

60 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOR

Length of connector no. 1

19.5 mm

Connector thread diameter

3/8 inch

Connector thread type

BSP

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection No. 2 Diameter

1/4 inch

Connection No. 2 Diameter

6 mm

ISO standard

228

Height

22 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Connection

BSP union nut with external cone 60°

Application

BSP screw connections

Type

DKOR
