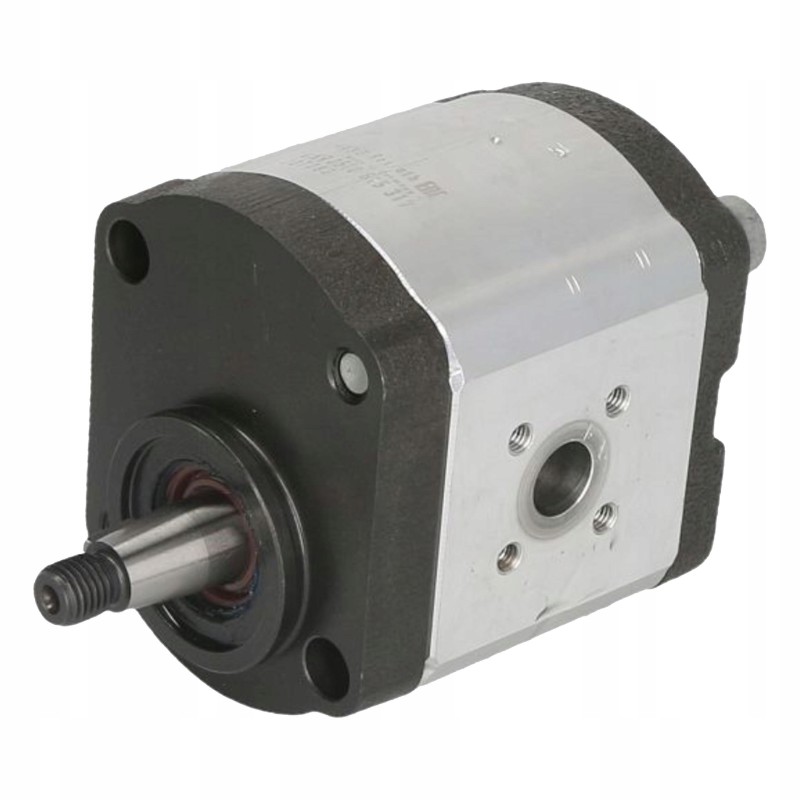

Hydraulic pump fendt g144040013011 bosch

Deutz-Fahr Fendt hydraulic pump G144940013011 01175656 01175997 01176003 01176452 Bosch RexrothFits:

Deutz-Fahr:

06: 6006, 6006F, 6006U, 6 206, 6206F, 6206U, 6806, 6806F , 6806U, 7006, 7006F, 7006U, 7206, 7206A, 7206F, 7206U, 8006, 8006F, 8006U, 10006F, 10006U, 13006

07: 4007F, 4007U, 4507, 4507A, 4507C, 4507F, 4807 , 4807A, 4807C, 4807F, 5207, 5207A, 5207C, 5207F, 6007, 6007A, 6007C, 6007F, 6207, 6207A, 6207C, 6207F, 6507, 6507A, 6507 C, 6507F, 6807, 6807A, 6807C, 6907, 6907C, 7007 , 7007A, 7007C, 7207, 7207A, 7207C, 7807, 7807A, 7807C

AgrStar: 4.61, 4.71, 6.11, 6.21, 6.31, 6.31

DX 3.SC: DX3. 10 SC

DX 3V/F/S: DX 3.10V, DX 3.30V/F, DX 3.50 S, DX 3.50 V/F, DX 3.70 V/F, DX 3.90 F, DX 3.90 S

DX 3 VC: DX 3.10 VC, DX 3.30 VC, DX 3.50 VC, DX 3.60 VC, DX 3.65 VC, DX 3.70 VC, DX 3.90 VC

DX 6.: DX 6.05, DX 6.10, DX 6.30, DX 6.50

Attention!!! Application depends on the hydraulic system used !!!

Fendt:

Farmer 100: 102, 102S, 102SA, 103, 103S, 103SA, 104LS, 104LSA, 104S, 104SA, 105, 105LS, 105LSA, 105S, 105SA, 106LS, 106LSA, 106S, 106SA, 108LS, 108LSA, 108S, 108SA

Farmer 200: 200S, 200SA, 200V, 200VA, 203P, 20 3PA, 203V, 203VA, 240S , 250S, 260P, 260S, 275S, 280S

Favorit 500: 509, 510, 511, 512, 514, 515

Favorit 600: 600LS, 600LSA, 610S, 610SA, 611LS , 611LSA, 611S, 611SA 612LSA, 612SA 614LSA, 614SA, 615LSA, 522LSA, 626LSA

Attention!!! Application depends on the hydraulic system used!!!

Technical data:

Shaft type: cone

Roller cone size: 1:5

Capacity: 16 cm³/rev

Continuous working pressure max.: 250 BAR

Momentary working pressure max.: 270 BAR

Working pressure max.: 280 BAR

Max rotation speed: 3500 rpm

Min rotation speed: 800 rpm

Mounting diameter: 50 mm

Connection on the suction side: FI-40 mm, 4-holes M6

Connection on the discharge side: FI-35 mm, 4-holes M6

Direction of rotation: counterclockwise (left)

Catalog number: G144040013011, G144940012010, G144940013010, G144940013011, G238401100012, G278940100019, G278941100010, G2819400 10010, G281940100010, G287940010010, G297940010010, G397740010010, 01174517, 01174513, 01174516, 01175656, 01175997, 01176003, 01176452

Manufacturer number: 0510615317

Manufacturer: Bosch Rexroth
