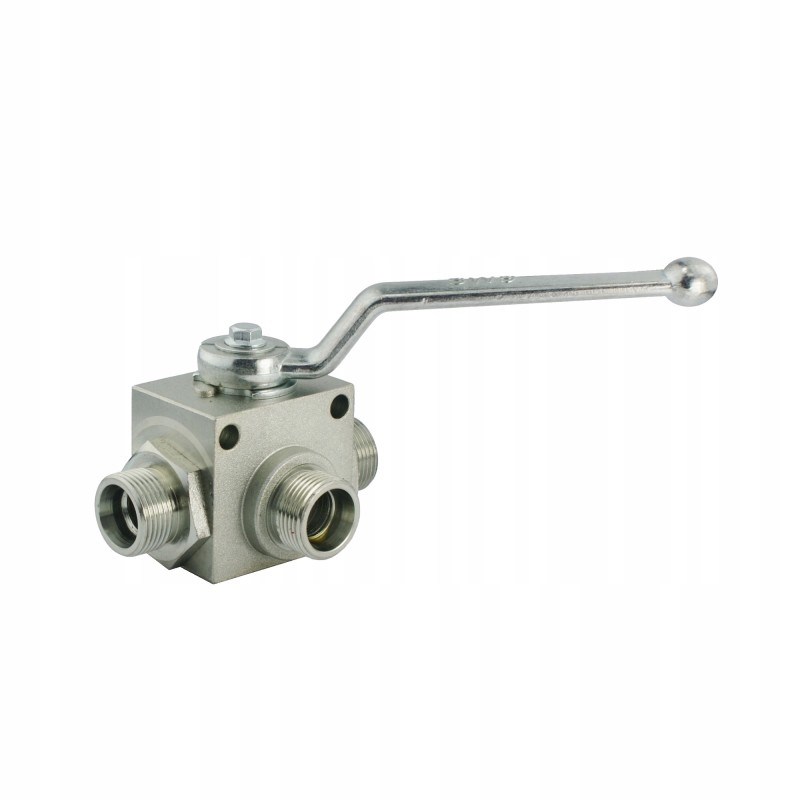

3-way hydraulic manual ball valve M14 10l

3-WAY HYDRAULIC BALL VALVE, TYPE 3/2, THREADS M14x1.5 Production:

Original product of the Hydrolider brand, symbol: 1.35.23.014

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Working Principle:

The valve is used to switch the entire oil flow between two independent hydraulic lines. Turning the lever 90 degrees completely closes the oil flow on the hydraulic line where the flow was previously free and simultaneously completely opens the flow on the second line, which was previously completely closed. The valve can be controlled even at high pressure.

Connection:

Connect P to the supply line, connect A and B to the two hydraulic lines between which it is necessary to switch the oil flow.

Technical data:

Maximum flow: 10 l/min

Number of holes hydraulic connections in the body: 3

External threads in the body: M14x1.5

Body material: galvanized steel

Permissible maximum pressure: 500 bar

Weight: 0.495 kg

Temperature range and oil type:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Mineral oil-based hydraulic oil

Hydraulic diagram of a 3/2 ball valve (photo):
