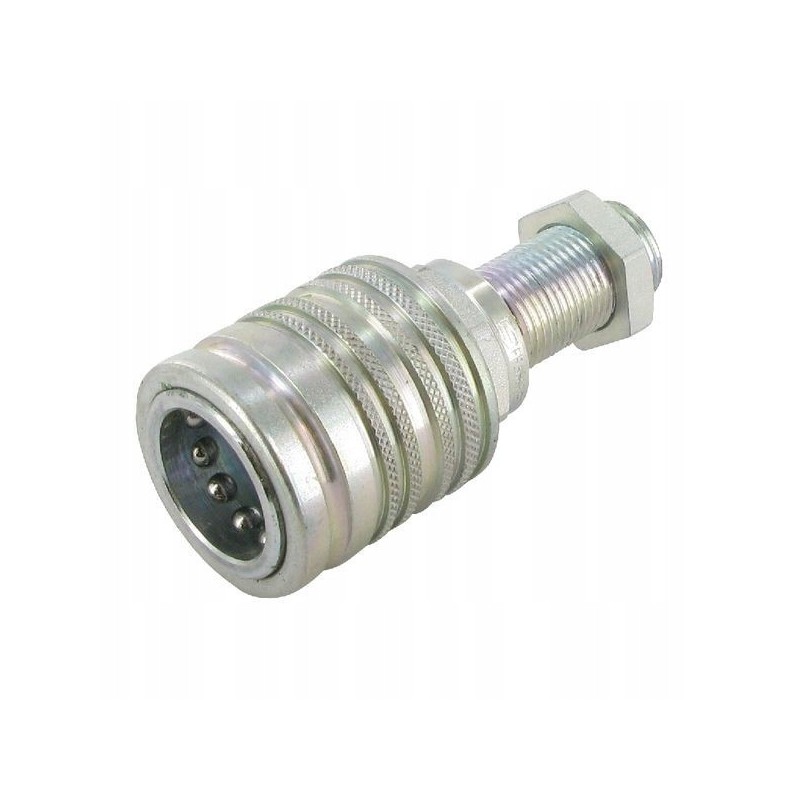

Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221
  • Quick connector type socket 1 2 m22x1 5 15l cpv085221

Quick connector type socket 1 2 m22x1 5 15l cpv085221

15011277588303
Faster
£40.32
Quantity
5 Items

Description
Part number: CPV0852215F

Unit: piece

Material: Carbon steel

Technical information: - Connection is made by inserting the plug (one-handed operation)

Features: - Push & Pull principle - Axial actuation of the locking sleeve in both directions (double acting) - Function tearing - Induction hardening in places exposed to rapid wear

B: 87 mm

D: 38 mm

Application: - Universal use - Agricultural machinery - Mineral oil-based fluids

Size: 1/2 inch

Outer diameter: 38 mm

ISO standard: 7241 - A

Connector thread pitch: 1.50mm

Surface treatment: White, passivated

Connection: M22 x 1.5

Surface treatment: White passivated

Connector thread type: Metric

Seal material: Nitrile rubber [NBR]

Interchangeable with: Faster NV / Vosswinkel SKP

working pressure: 300BAR

Max flow: 75l/min

Seal material: NBR / PTFE

SW: 27mm

P: 35mm

Product Details
Faster
15011277588303
3CFPV212215F
5 Items
New

Data sheet

Manufacturer
Faster
Part Number
3CFPV212215F
Original part number
3CFPV212215F
