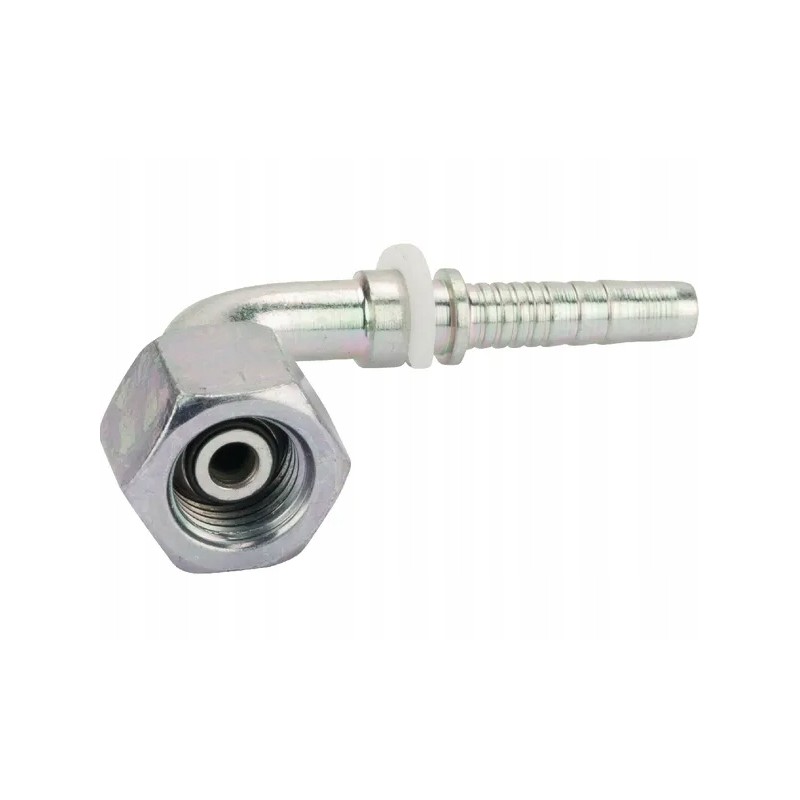

Pf6490 tip dn06 1 4 bsp 90

PF6490 Tip DN06-1/4 BSP-90EAN

8716106440894

Cone angle

60 °

Shape

Elbow - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Type of connector no. 1 - code

DKOR

Length of connector no. 1

39.3 mm

Thread diameter connectors

1/4 inch

Connector thread type

BSP

Wrench size for connector #1

19.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

1/4 inch

Connection no. 2 diameter

6 mm

ISO standard

228

Angle

90 °

Material

Steel

Surface treatment

Galvanized

White passivated

OE reference number

H1220893-040400

Connection

BSP union nut with external cone 60°

Application

BSP screw connections

Type

DKOR
