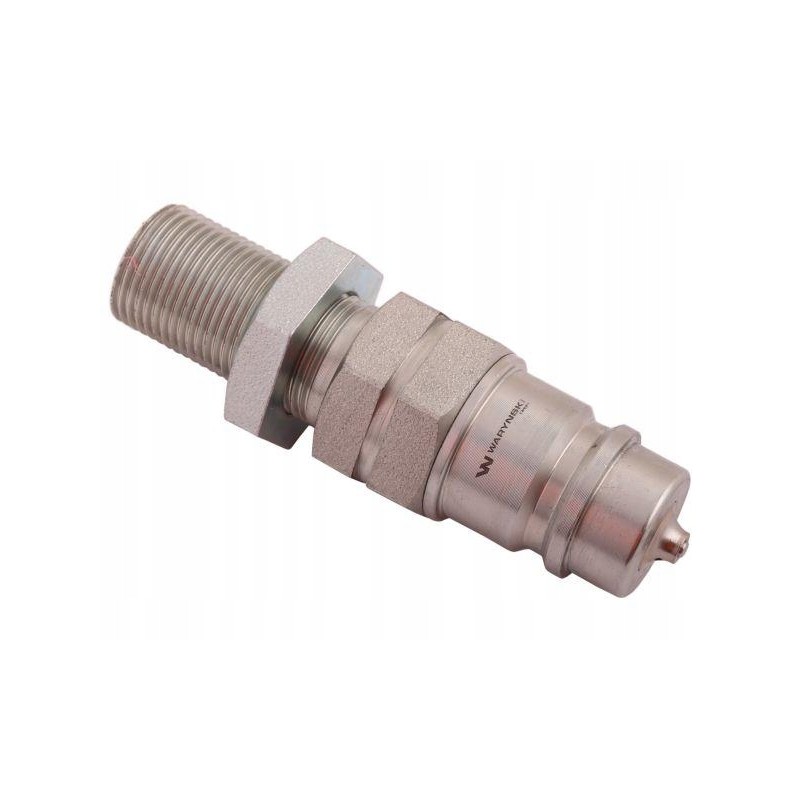

M20x1 5 quick connector, euro male thread Warynski

Hydraulic quick connector, long plug with pressure eliminator M20x1.5 external thread EURO (ISO 7241-A) WaryńskiHydraulic quick connector long plug with pressure eliminator M20x1.5 external thread EURO (ISO 7241-A) Waryński Hydraulic quick connector long plug with pressure eliminator M20x1.5 thread external EURO (9100822W) (ISO 7241-A) Waryński. The pressure eliminator allows the hydraulics to be connected without the need to apply excessive force, ensuring a quick and easy connection process in any situation (static pressure between the two hydraulic systems is released). It is an ideal solution for connecting hydraulics with a very wide range of applications. The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

*Parameters:

*Thread: External M20x1.5 (long with locknut)

*Standard: (EURO), ISO-7241-A (ISO-A)

*Type: Plug with pressure eliminator

*Cone - thread: 60°

*Max. working pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits sockets: WIAM14MZ, WIAM16MZ, WIAM16MZL, WIAM18MZ, WIAM18MZL, WIAM22MZ, WIAM22MZL, WIAR12MW, WIAM14MZ-PP, WIAM16MZ-PP, WIAM16MZL-PP, WIAM18MZ-PP, WIAM18MZL-PP, WIAM22MZ -PP, WIAM22MZL-PP, WIAM20MZ -PP, 9100822G, 9100822GL, 9100818G, 9100818GL, 9100816GL, 9100814G, 9100816G, 9100820G, WIAM18MW-PPE, WIAM18MZL-PPE, WIAM18MZ-PPE, WIAM20MZ-P PE, WIAM22MW-PPE, WIAM22MZL-PPE, WIAM22MZ-PPE, WIAR12MW-PPE

*Fits cover: RM-WTYK12Z

-️ Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand. ,WIAM14MZ

WIAM16MZ WIAM16MZL WIAM18MZ WIAM18MZL WIAM22MZ WIAM22MZL WIAR12MW WIAM14MZ-PP WIAM16MZ-PP WIAM16MZL-PP WIAM18MZ-PP WIAM18MZL-PP WIAM22MZ-PP WIAM22MZL-PP WIAM20MZ-PP 9100822G 9100822GL 9100818G 9100818GL 9100816GL 9100814G 9100816G 9100820G, WIAM18MW-PPE, WIAM18MZL-PPE, WIAM18MZ- PPE, WIAM20MZ-PPE, WIAM22MW-PPE, WIAM22MZL-PPE, WIAM22MZ-PPE, WIAR12MW-PPE,RM-WTYK12Z

* Producer: Waryński
