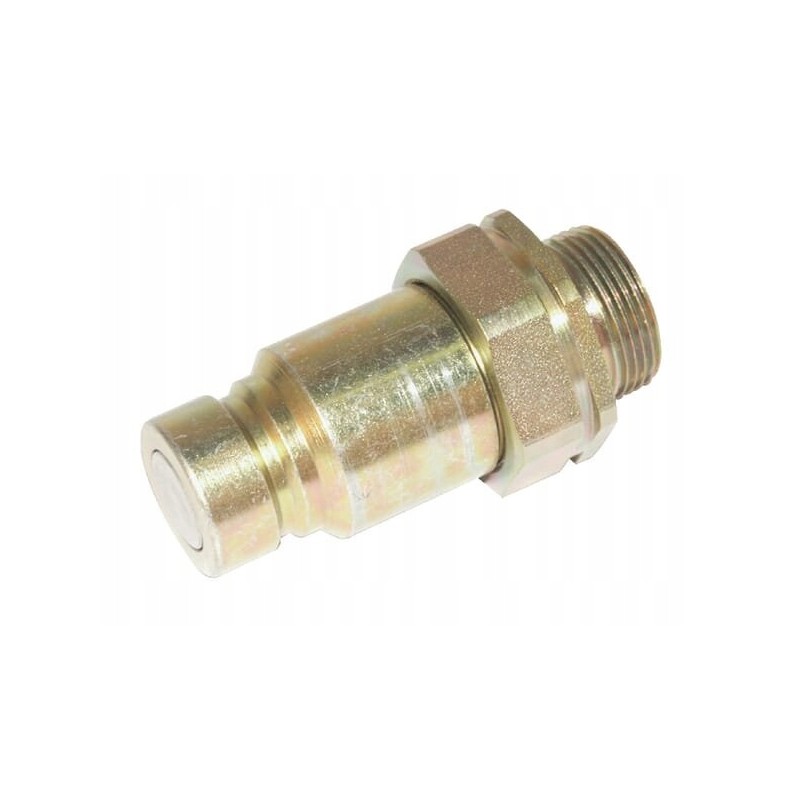

Skv flat quick connector m plug 3 8 thread

SKV-M flat quick connector, plug 3/8' external thread M18x1.5 12L Parameters

Part number: SKVM10L18

Unit: piece

Manufacturer: DNP

Size (code): BG 2

Size: 3/8 inch

Shape: Straight - 2 sides connection

Connector type no. 1: Quick connector

Connector type no. 1 - male/ female: Male

Diameter of connector no. 1: 19.8 mm

Outer diameter: 32 mm

Material: Steel

Working pressure: 250 BAR

Working temperature max.: 100 °C

Working temperature min.: -30 °C

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Diameter: 12 mm

Connector No. 2 Thread Diameter: M18

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. 2 Thread Type : Metric

Possibility of connecting under pressure: No

ISO standard: 16028

Total length: 61 mm

Connection type: plug

D: 32 mm

M thread: M18 x 1.5 mm

Thread type: external

Specifications

- One-handed connection

- With special flat valve Benefits

- Easy to use

- Minimum degree of leakage - Joining without air inclusions Application

- Construction and agricultural machinery - Hydraulic tools

- Can be used in ecologically sensitive areas - Mineral oil based fluids Properties

- With cut-off on both sides - Highest corrosion resistance Surface treatment

- Zinc

- Nickel plated

Seal material

- Nitrile rubber [NBR]

- Teflon (PTFE)
