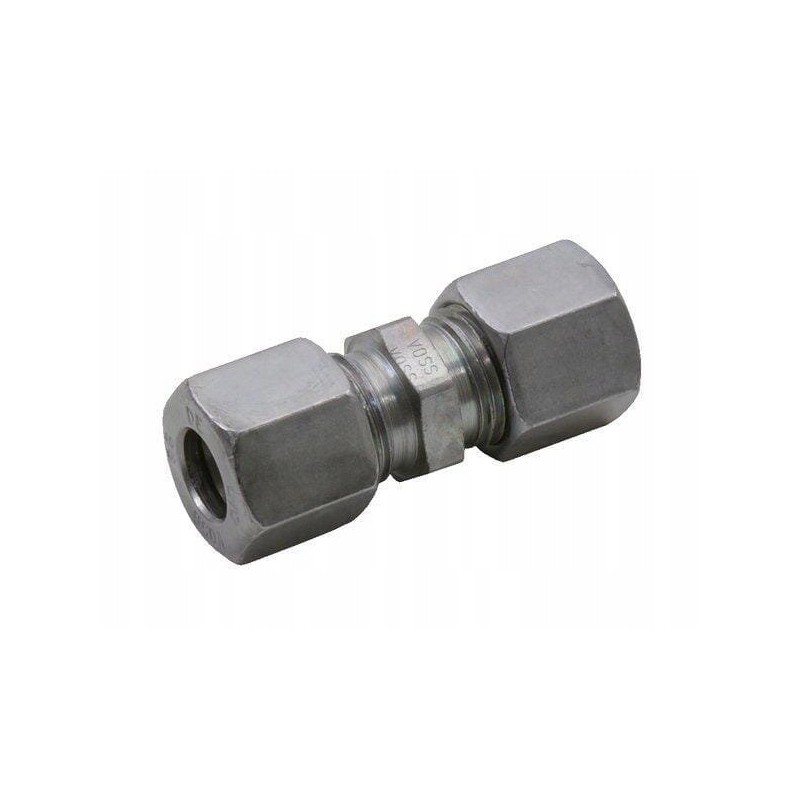

Straight threaded connector 12 l gv12l voss

Straight threaded connector 12 L Parameters

Part number: GV12L

Unit: piece

Manufacturer: Voss

EAN: 8719607050104

Shape: Straight - 2 sides of connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter: 12 mm

Connector thread diameter: M18

Connector #1 thread pitch: 1.5 mm

Connector thread type: Metric

Wrench size for connector [S1]: 19 mm

Connector type no. 2: Cutting ring

Connector type no. 2 - male/female: Male

Connection no. 2 diameter : 12 mm

Connector No. 2 thread diameter: M18

Connector No. 2 thread pitch: 1.5 mm

Connector No. 2 thread type: Metric

Wrench size for connector no. 2 [S2]: 22 mm

Distance between connectors [L1]: 14 mm

Pipe diameter: 12 mm

Total length [L]: 43 mm

Cone angle: 24

Surface treatment: Zinc, Nickel-plated

Max working pressure: 400 BAR

Series: L

Specifications

- 2S cutting ring

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the cutting ring and perfect operation

- High corrosion resistance

DIN standard

- 2353

- 2401
