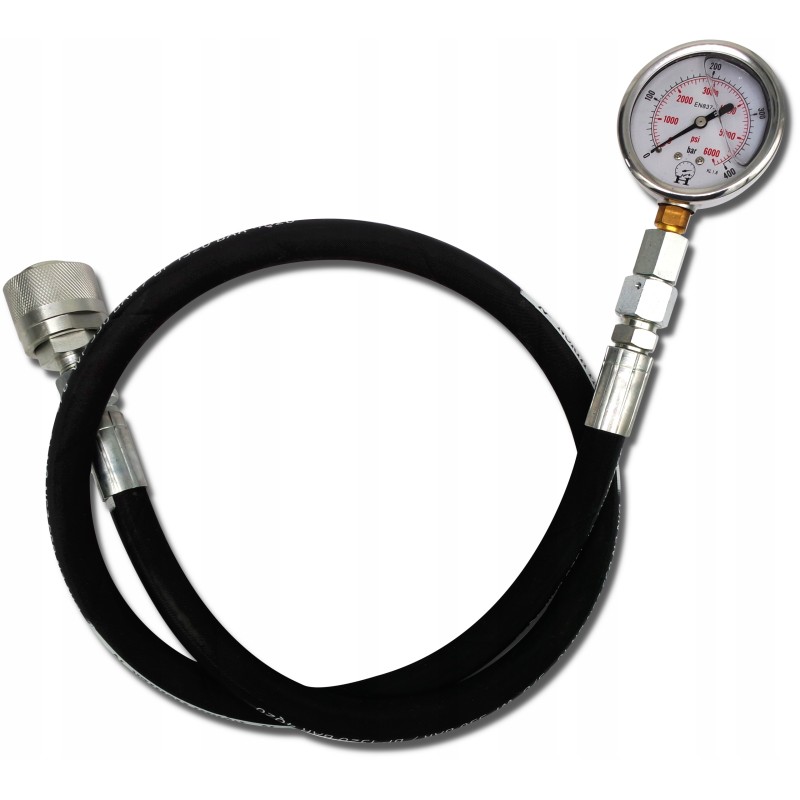

Pressure measurement kit in the hydraulic system

Set for measuring pressure in the hydraulic system[7858]The connection is made using a very popular OLD TYPE screwed quick connector, thanks to which you can measure the pressure in hydraulic systems in agriculture, horticulture, forestry or construction.

The glycerin pressure gauge is perfect for hydraulically powered machines and devices.

The pressure gauge enables measurement of liquid pressure in a closed hydraulic system.

The set includes: Hydraulic pressure gauge 0-400 BAR [0313]

Manometric connector G1/4' - M18x1.5 [1403]

Screwable quick connector, old type, M18 plug [1423]

Hydraulic Hose 2SN-3/8' x 115cm [1539]

Straight ferrule M18x1.5 for 3/8' hose [1527]

Straight ferrule GZ M18x1.5 for 3/8' hose [1534]

2x Hose sleeve 3/8' 1SN/2SN [1536]

Glycerine manometer 63mm for measuring pressure: 0-400 bar, solidly made[0313]

The glycerine manometer differs from standard manometers by having an interior filled with glycerine, which secures and protects the pointer against vibrations and oscillations.

Glycerin also allows you to increase the level of measurement accuracy.

Technical data:

Pressure measurement range: 0-400 Bar

Outer diameter of the clock: 63mm

Connection port thread [BSP]: 1/4' + G1/4' connector - M18x1.5

Operating temperature [°C]: -10 to +50

Accuracy class: 1.6

Material:

Steel housing, glass viewer

Hydraulic hose 2SN-3/8' DN10[1539]

Pressure hydraulic lines are self-sealing after tightening them.

They are used to connect individual components of hydraulic systems, including: actuators, distributors, tanks or engines.

Due to its universality, it can be used in any system with a maximum oil pressure of 330bar and flow up to 50L/min.

It is intended for use indoors and outdoors. outside.

Technical Specifications: Number of braids: 2

Internal diameter of the passage (DN10): 10 mm

Outer diameter of the hose: 16.9 mm

Cable length: 1150 mm

Maximum pressure: 330 Bar

Maximum flow: 50L/min

The cable is flexible and resistant to weather conditions. QUICK SCREW CONNECTOR, OLD TYPE PLUG [1423]

They are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks and dirt getting into the system.

Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one drive hydraulic, e.g. tractor.

Specification: Quick connector type: OLD TYPE

Quick connector type: plug

Thread type: short, external

Material: galvanized steel
