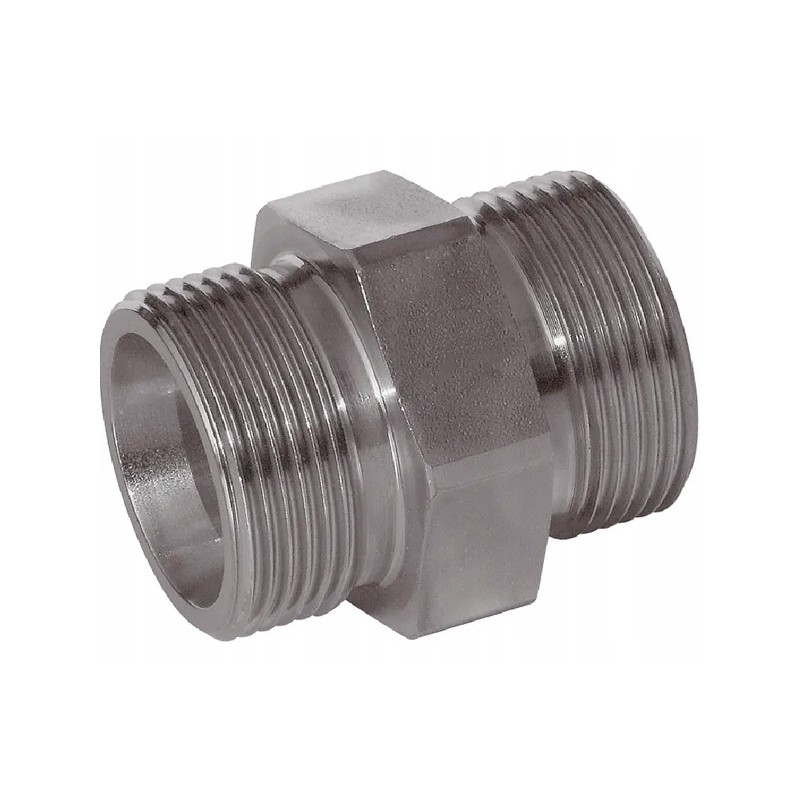

GS18L Straight connector M26x1.5 18LEAN

8716106787722

Advantages

Limited risk of leakage

Product details

To direct connection to metric hose nut or pre-assembled connector

High corrosion resistance

Shape

Straight - 2 sides connection

Connector type No. 1

Cutting ring

Connector type No. 1 - male/female

Male

Connection diameter

18 mm

Thread diameter of connector no. 1

M26

Thread pitch of connector no. 1

1.50 mm

Connector Thread Type

Metric

S1 Wrench Size for Connector No. 1

27.0 mm

Connector No. 2 Type

Cutting ring

Connection type no. 2 - male/female

Male

Connection no. 2 diameter

18 mm

Thread diameter of connection no. 2

M26

Thread pitch of connection no. 2

1.50 mm

Thread type of connection no. 2

Metric

S2 Key size for connector #2

32.0 mm

L1 Distance between connectors

16 mm

Pipe diameter

18 mm

DIN standard

2353

2401

Internal diameter

15 mm

L Total length

31 mm

Surface treatment

Zinc< p>

Nickel-plated

Max working pressure

400 BAR

Series

L
