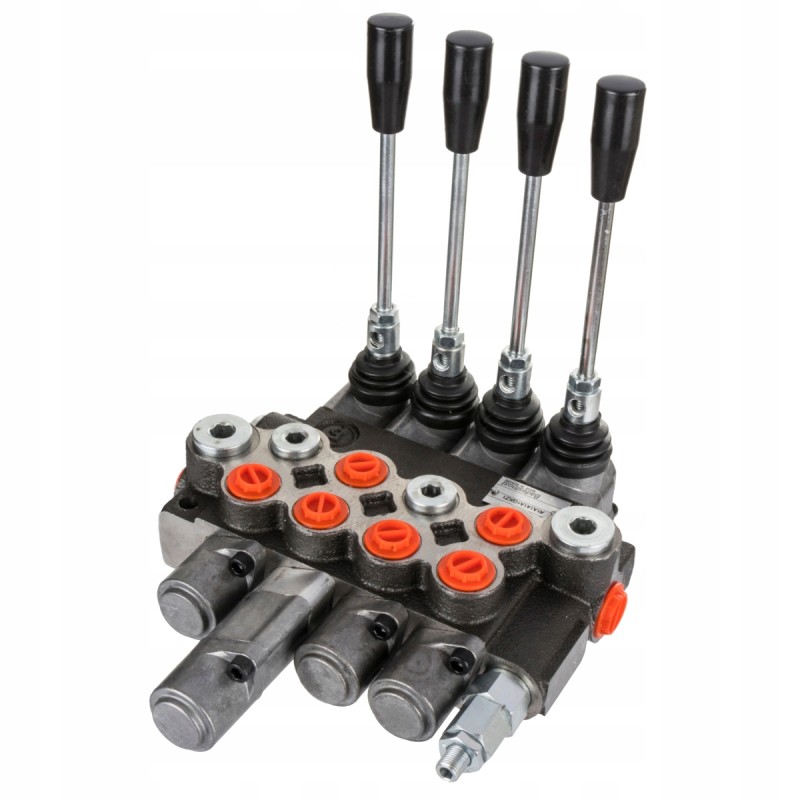

Hydraulic distributor 4 sections 40l 1 d 1 pl 2 units

4-sec distributor 40l 1x double-sided 1x floating 2x single-sided MIZAR number: 62957

4-sec distributor 40l 1x double-sided 1x floating 2x single-sided

Manually controlled 4-section hydraulic distributor by Badestnost< p>

It is widely used in hydraulic systems in construction, agriculture and industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Distributor equipped with four sections (including one floating). This allows the distributor to be widely used with various machines. The undoubted advantage of the floating section is the possibility of cooperation with both double-acting cylinders (folding harrows, reversible plows, etc.) and single-acting cylinders (tipping cylinders, hydraulic lifters, etc.). In the winter season, the floating section is perfect for operating a snow plow.

► The floating section has 4 positions:

1 - actuator extension

0 - distributor in position neutral,

2 - return of the double-sided actuator

3 - lowering of the single-sided actuator (in the case of a double-sided actuator - this position allows it to 'float', which is used, for example, in snow plows)

► Other sections:

► regular (double-sided) supports double-acting cylinders or hydraulic motors (this requires the operator to hold the lever).

► 2x plunger section to control the cylinders single-acting

Technical information:

Operating temperature: 15 / +80°C

Capacity: 40L/ min

Internal threads in the body:

Power connection port: 1/2'

Return connection port: 1/2'

Section connection ports: 3/8'

PRESSURE RANGE:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on the sections : 300Bar

The overflow valve is factory set to 175Bar

It allows you to control the lift and extensive external hydraulics.

This solution is more economical , simpler, easier to use and repair.

MIZAR number: 62957
