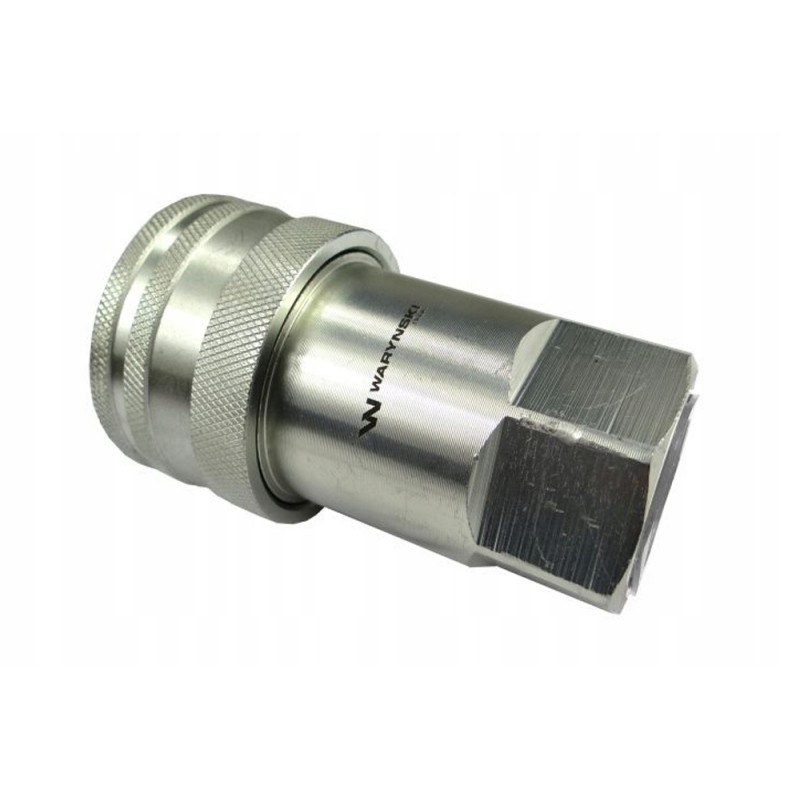

Hydraulic quick connector, socket 3 8 Warynski

HYDRAULIC QUICK COUPLING SOCKET G3/8' BSP INTERNAL THREAD ISO 7241-A WARYŃSKI

Hydraulic quick coupler socket G3/8'BSP internal thread ISO 7241-A WaryńskiParameters:

*Operating temperature: from -25°C to +120°C

* Thread : Internal 3/8'

*Max working pressure: 31.5 Mpa / 315 bar

*Standard: ISO-7241-A (ISO-A)

*Group: Quick connectors

*Fits plugs: WIAR38SW

*Cone - thread : BSP

*Type: Socket

Waryński hydraulic quick connector - ISO-7241-A socket. The most popular hydraulic quick connectors with a very wide range of applications. The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable

with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

* Application:

Quick connectors used in agricultural, forestry, industrial and construction machines.

Waryński quick connectors solve the problem of quick connection and disconnection flexible cables. The spring mechanism makes it easy to connect the plug to the socket with one hand.

* Product code: WIAR38MW

-️ Comparison number: B300-HP081IGF06,W-U38-ISOA

* Buy once and do it right!

* Producer: Waryński Original
