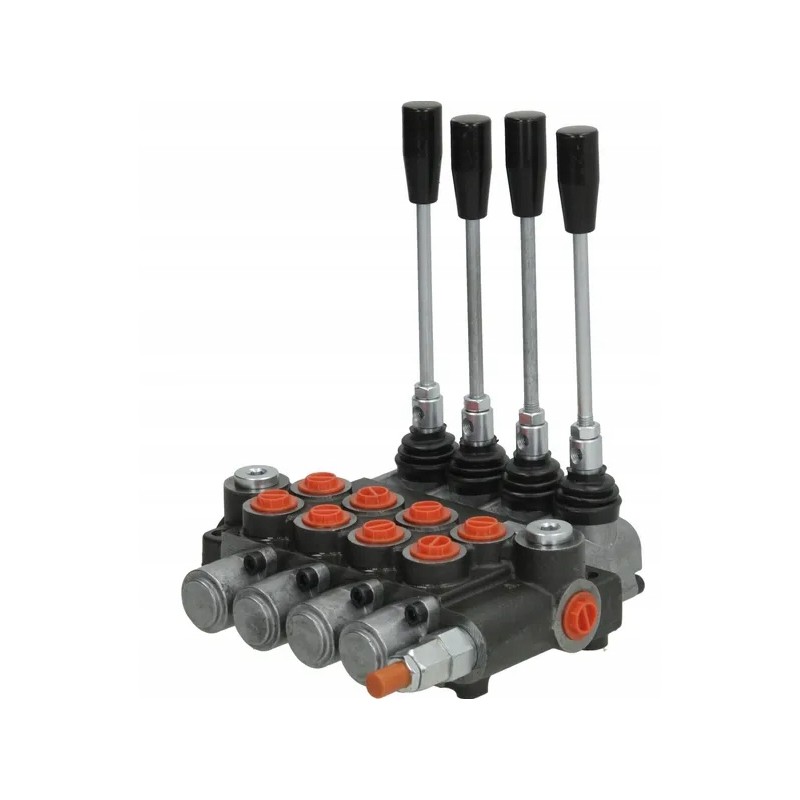

Hydraulic distributor mbv5 4-section a1 kz1

MBV54001GP MBV5 hydraulic distributor, 4 sections A1A1A1A1 KZ1EAN

8716106307333

Application

Applications in hydraulic systems with medium amounts of oil

Municipal equipment< p>

Vineyard tractors

Log splitter

Tipper

Features

Solid block construction

Main pressure relief valve and check valve in P port

Suitable for open system (can be adapted to closed system)

Customizable to suit many application areas

Number of sections

4

Consists of

Control valve

Operating lever

Max flow.

50 l/min

Max working pressure

300 BAR

Connection thread type

BSP< p>

Connection thread diameter

3/8 inch

Max leakage

5 cm³/min

Actuator

Manual operation

Type of adjustment

Allen screw

C

199 mm

D

167 mm

Lever length

80 mm

High

60

Information

4x double acting, spring return

Gasket material

Nitrile rubber (NBR)

End plate

Open circuit

PL & ST

A1, A1, A1, A1

Type

1-5 sections
