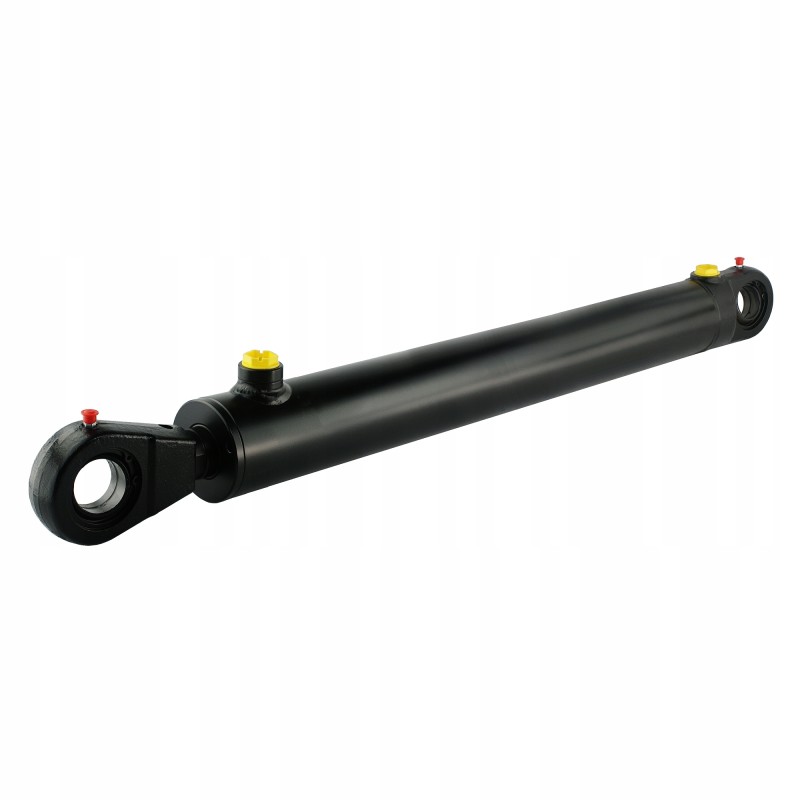

Very strong cylinder for Tur C 330 C 360 Zetor

DOUBLE-ACTING HYDRAULIC CYLINDER, COMPLETE WITH EARS ON SWINGING BEARINGSProduction:

Original product of the Hydrolider brand, manufacturer's symbol: 1.31.20.021, CJ2F 63/36/630 U25

Application:

It is widely used in hydraulic systems in agriculture, construction and industry.

Main use: lifting the boom in the TUR 1,2,3 loader

The actuator fits perfectly in place of the old and thin single-sided operation and the boom's operating range will remain identical.

The installation of a double-acting cylinder significantly improves work with the loader. Speeds up the lowering of the loader frame and adds the so-called pressure, which is very useful in some works.

The cylinder is thick and massive, it will slow down the lifting of the boom by about 15%, but will significantly increase the lifting capacity of the entire loader. Compared to the original actuators, the power is up to twice as high!

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER:

What you can see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider actuators, which are the only ones that guarantee reliability for years.

General information:

Head mounting on the pipe side: welded

Mounting the head from the rod side: screwed on

Type of stuffing box (closing cover): threaded, screwed into the pipe

Type of rod (piston rod): chrome-plated, weldable

Dimensions:

Piston (pipe) outer diameter: 73mm

Piston (pipe) inner diameter: 63mm

Piston rod (rod) diameter: 36mm

Diameter of holes for pins: 25mm

Stroke (working movement) of the piston rod: 630mm

Length in the rest state measured in the axes of holes: 870mm

Internal threads for connections: M22x1.5

Operating parameters:

Maximum allowable operating pressure: 250 bar

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Liquid type: mineral oil-based hydraulic oil

Table showing the change in the pushing force of the offered actuator depending on from the change in oil pressure in the hydraulic system (photo):
