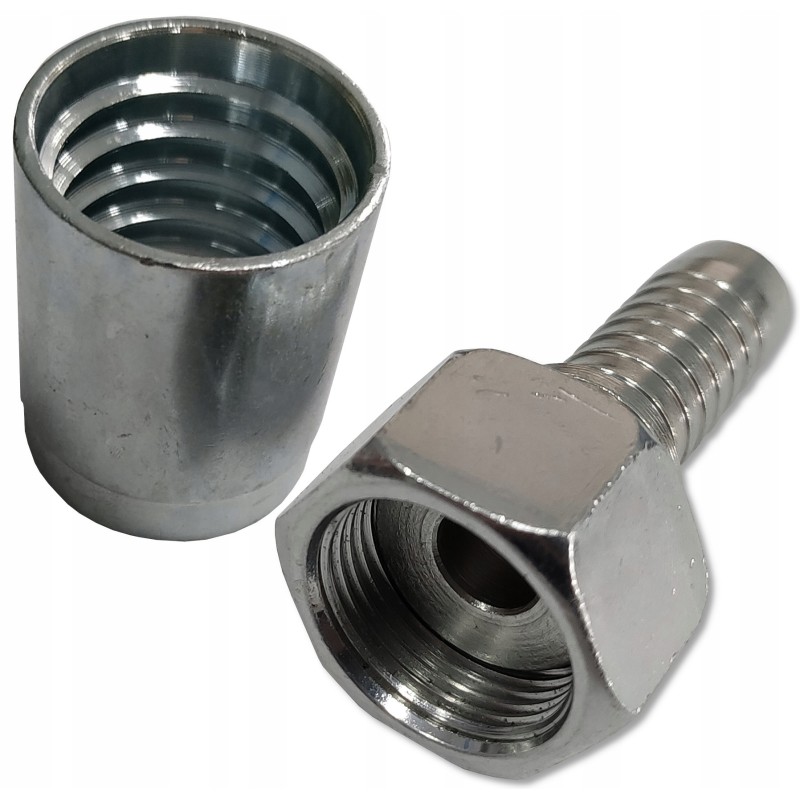

Set of 5x Flat Hydraulic Ferrule - Straight M22 - [1537]
Used for crimping flexible hydraulic hoses to enable connection of the lines with other elements.
Used in D-35 trailers for cylinders with a stroke of 520 mm and similar. The basic element of the production of lines - is done by crimping the hose with a clamping sleeve using hydraulic press or crimping machine.
At each stage of production, precision and quality supported by detailed measurements.
The most modern CAD/CAM and ERP/MRP software solutions enabling the production of details for the most demanding applications.
Cripping symbol: DKL-FL P41 13 M22x1.5 Technical Specification :Hose dimensions: DN13 - 1/2'
DN dimension for the tube: 13
Nut thread: M22x1.5
B (mm): 24
L (mm): 30
Material: Free-cutting carbon steel with zinc coating - Resistant to corrosion
