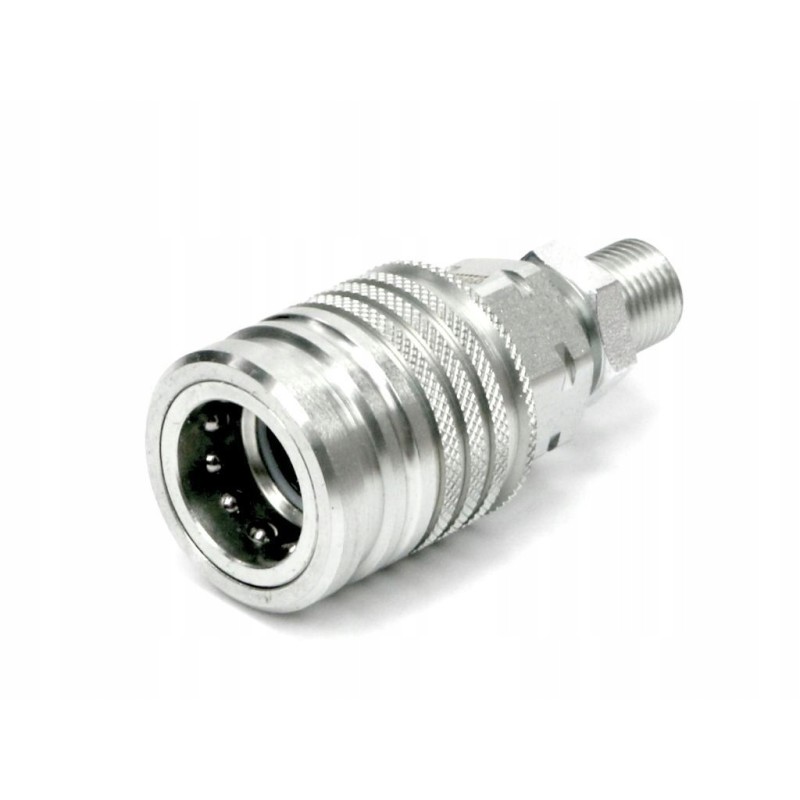

Hydraulic quick connector, Euro socket, M22x1, 5 threads

Hydraulic quick connector, EURO socket M22x1.5 GZ Push-pull long (9100822GL) VOIMA EAN: 5902287187137

SKU: V-ML22GN

VOIMA Hydraulics hydraulic quick connector - EURO socket (PUSH-PULL). Hydraulic quick connectors with a very wide range of applications. Spring mechanism (works in both directions). Manufactured in accordance with ISO 7241 Series A.

Thread: External M22x1.5 (long with locknut)

Collective packaging: 1 pc.

Max. working pressure: 25.0 Mpa / 250 bar Cone - thread: 15L (15mm)

Fits plugs: WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 910082 0W, WIAM18SWE, WIAM18SZE, WIAM18SZLE, WIAM20SZE, WIAM22SWE, WIAM22SZE, WIAM22SZLE, WIAR12WE, V-M14WT, V-M16WT, V-M18WT, V-M22WT, V-M20WT, V-ML16WT, V-ML18WT, V-ML22WT

Fits cover: RM-GNIA12Z, 5049004EURO, V-PGN125A, V-PGN125B, V-PGN125C, V-PGN125D, V-PGN125E

Type: PUSH-PULL

socket Standard: (EURO), ISO-7241-A (ISO-A)
