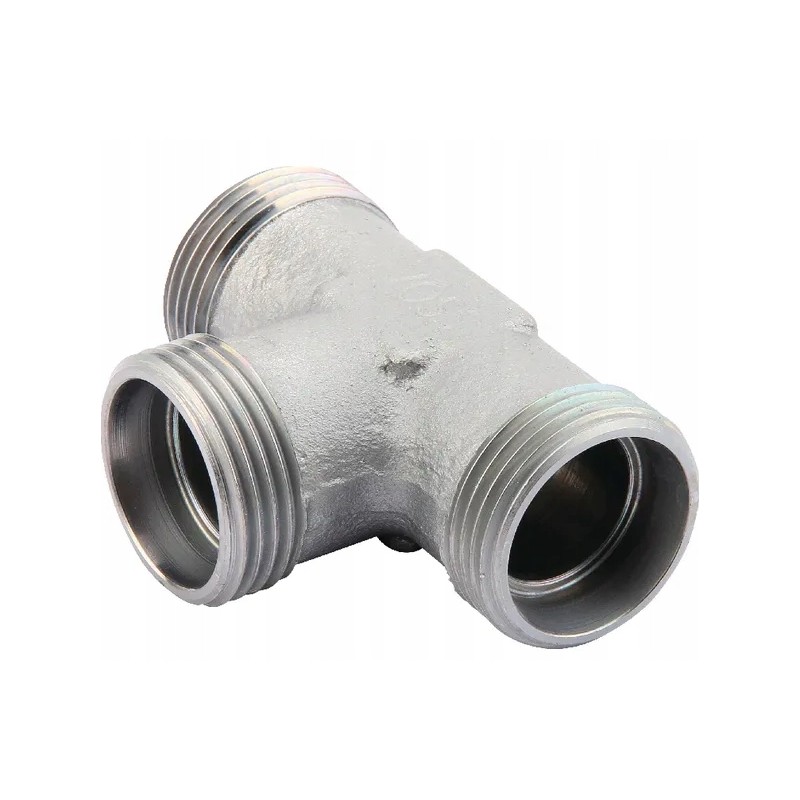

Ts15l tee connector m22x1 5 15l

TS15L Tee connector M22x1.5 15LEAN

8716106786435

Shape

Tee (T) - 3 connections

Connector type no. 1

Thread

Connector type no. 1 - male/female

Male

Connection diameter

15 mm

Connector no. 1 thread diameter

M22

Connector No. 1 Thread Pitch

1.50 mm

Connector Thread Type

Metric

Wrench Size for Connector No. 1

27.0 mm

Connector No. 2 Type

Thread

Connector No. 2 Type - Male/Female

Male

Connection No. 2 Diameter

15 mm

Connector No. 2 Length

21 mm

Connector No. 2 Thread Diameter

M22

Connector No. 2 Thread Pitch

1.50 mm

Connector No. 2 Thread Type

Metric

Connector No. 2 Wrench Size

27.0 mm

Connector No. 3 Type

Thread

Connector No. 3 Type - Male/Female

Male

Connection No. 3 Diameter

15 mm

Connector No. 3 Thread Diameter

M22

Connector No. 3 Thread Pitch

1.50 mm

Connector No. 3 Thread Type

Metric

Centerline Dimension connector to the end of the next connector

21 mm

28 mm

Pipe diameter

15 mm

DIN standard

2353

2401

Internal diameter

12 mm

Total length

56 mm

Body height

19 mm

Surface treatment

Zinc

Nickel-plated

Max working pressure

400 BAR

Series

L
