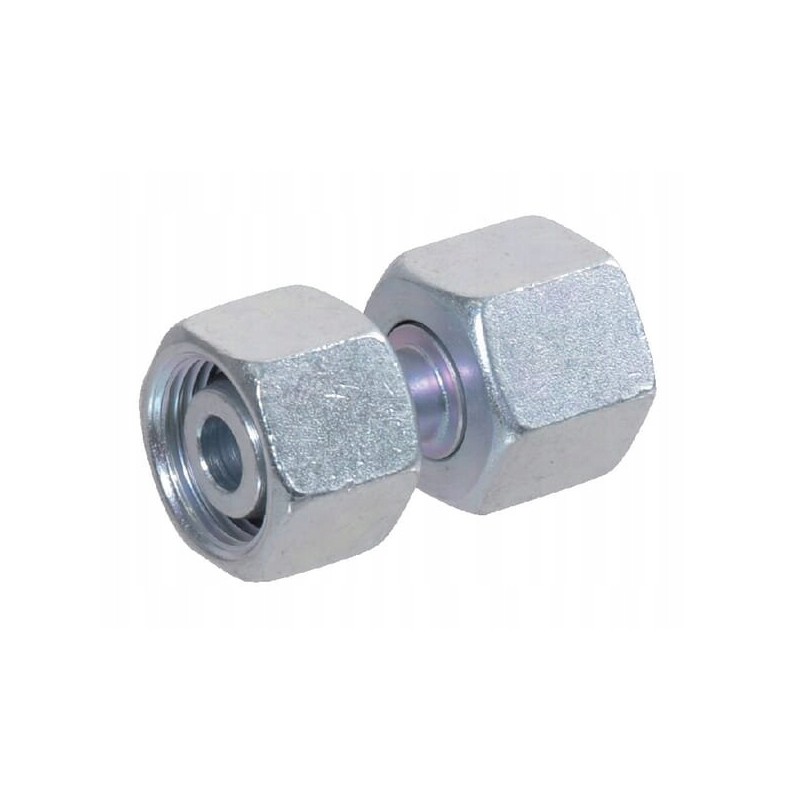

Straight connector with nuts m16x1 5 10l m16x1 5 10l

Straight connector with nuts M16x1.5 10L - M16x1.5 10L Parameters

Part number: GVO10L10L

Unit: piece

Manufacturer: Dietzel

Shape: Straight - 2 sides

Connector type 1: Swivel nut

Connector type 1 - male/female: Female

Connector thread diameter no. 1: M16

Surface treatment: Galvanized

Max working pressure: 315 BAR

Thread pitch of connector no. 1 [M1]: 1.5 mm< p>

Series: L

Connector No. 1 Thread Type: Metric

Connector No. 2 Type: Swivel Nut

Connector No. 2 Type - Male /female: Female

Connector No. 2 thread diameter [M2]: M16

Connector No. 2 thread pitch [M2]: 1.5 mm

Thread type connectors no. 2: Metric

DIN Standard: 2401

Specifications

- Pre-assembled O-ring

Benefits

- Low risk of leakage

Application

- Hydraulic hose

- Hydraulic lines

Consists of

- Main part

- Union nut

- Sealing cone with O-ring

Technical information

- Available in steel on request noble

- Viton gasket available on request

- Galvanized without CR6

Pipe diameter

- 10 mm

- 10 mm
