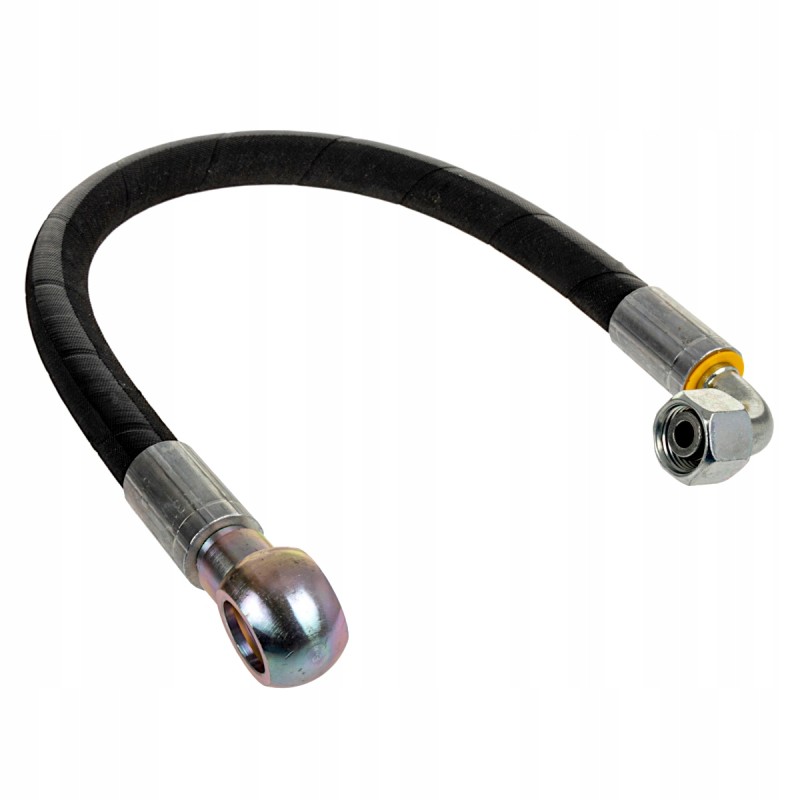

Hydraulic hose 44cm, distributor ring

Hydraulic hose 44cm angular ring of the external distributor kit MIZAR number: 64859

Hydraulic hose 44cm angled ring of the external distributor set

High-quality hydraulic hose with crimped ends.

Each assembly comes with one tip connector (which eliminates mis-fitting insert and ferrule) and appropriate tubing.

Flexible tubing is a synthetic rubber pipe with a synthetic outer coating and high yield strength steel wire reinforcement.

Applications

Applications include: Medium pressure service of petroleum based hydraulic fluids, mineral oils, lubricating oils, water glycol, water-oil emulsion hydraulic fluids, hot oil, grease, crude and fuel oils, air and water

Cable specifications:

Inner diameter: 10 mm

Outer diameter max: 19.7 mm

Working pressure: 33 Mpa / 330 bar Bursting pressure: 132 Mpa / 1320 bar Number of braids: 2

Operating temperature: -40°C to +100°C

Inner layer: Black rubber made of synthetic rubber, resistant to oil and water Outer layer: Black rubber made of synthetic rubber, resistant to abrasion, oil, weather conditions and ozone

Minimum bending radius: 130.0 mm

MIZAR number: 64859
