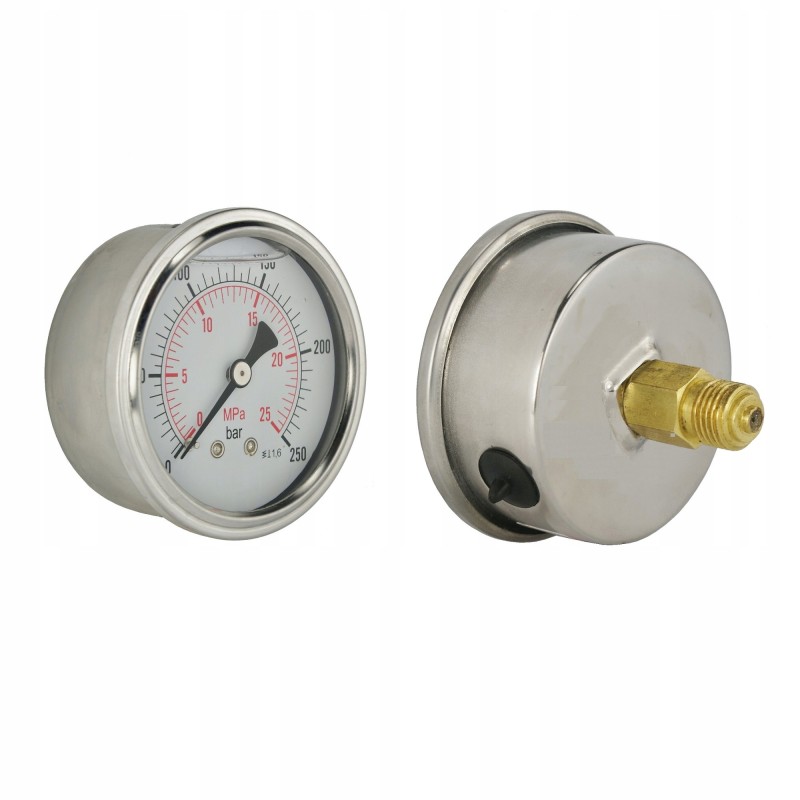

Glic pressure gauge 63mm 0 25bar t 1 4 hydrolider

GLYCERINE MANOMETER 63mm WITH CONNECTION ON THE REAR PRESSURE MEASURING RANGE: 0-25 BAR (REVIEW PHOTO OF MANOM. WE SEND WITH SCALE AS IN THE DESCRIPTION)

Production:

Original product of the Hydrolider brand, symbol: 1.52.01.011

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Manometers intended for measuring the pressure of liquids in closed systems, for measuring the pressure of gases and liquids that do not react with copper alloys.

The manometer is filled with glycerin inside, thanks to which the measurement is accurate despite shocks and vibrations. It has a plug used to equalize the pressure inside the manometer with atmospheric pressure.

Technical data:

Pressure measurement range: 0-25 Bar

Outer diameter of the clock: 63 mm

Connection port thread [BSP]: 1/4' (a special connection is required, available on our other auctions)

Operating temperature [°C]: -10 to +50

Accuracy class: 1.6

Material:

Steel housing, glass viewfinder
