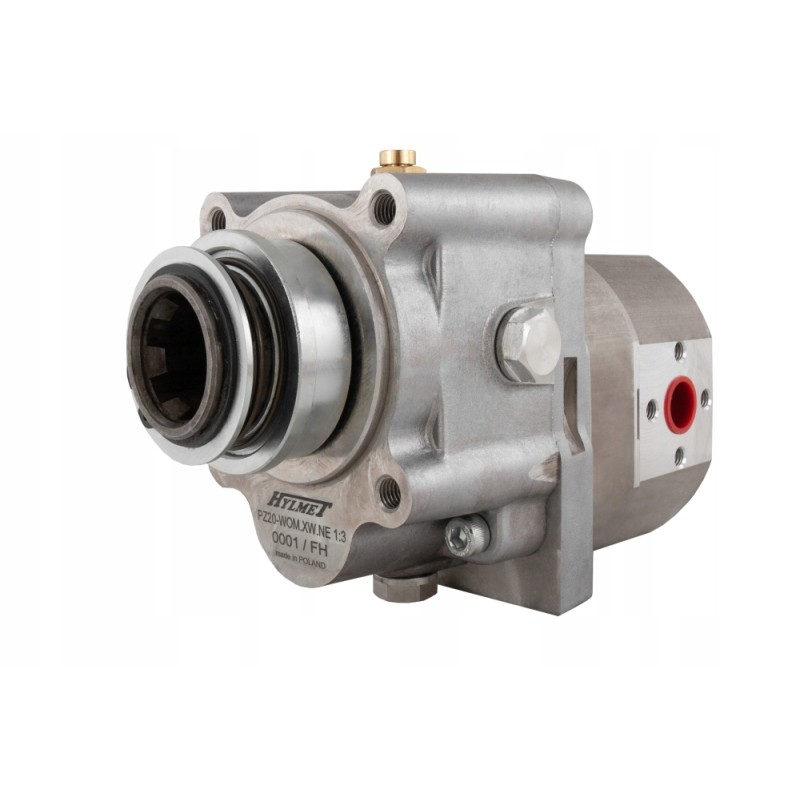

Small multiplier with a PTO capacity of 25 liters min

modern multiplier + gear pump for use in agriculture, orchard tractors and municipal equipment. At this auction you are purchasing a set: PZ20-PTO.XW.NE 1:3 + PZ20-PTO.NE-16 FREE!! FREE gear oil!! Gearbox technical data:

Durable, failure-free gear that you can rely on for years. Product 100% Polish production.

The gear is based on helical teeth, guaranteeing quiet and comfortable operation (-14dB)*

The multiplier has standard mounting holes around the latch (4xM10 - Ø110) identical to those found in imported GR2 gears.

- Multiplier power: 10 kW

- Gear ratio: 1:3.0

- input revolutions: 540

- output revolutions: 1620

- max input torque: 177 Nm

- max output torque: 59 Nm

- operating noise: 75dB (-14dB)*

- gear weight: 3.78kg (-1.23kg)*

Possibility to install PZ20-PTO series pumps.

PTO socket: PTO 1.3/8' DIN9611 standard - 6 cutters

* compared to the GR20 gearbox 1:3.0 -10 kW.

Technical data of the pump :Geometric volume: 15.4 cm3/rev

Performance: 25 l/min

Pressure: 200 bar

Rev range: 800 - 2500

Suction connection: Ø14.2 + 4xM6 / Ø30.2 - karo

Discharge connection: Ø19 + 4xM8 / Ø40 - karo

Advantages of NE series pumpsDesigned for continuous operation under heavy load.

Higher efficiency - the volumetric efficiency of new generation pumps is approximately 2-5% higher than pumps of 'classic' design.

Fewer components - the new design of pumps reduces the number of parts. This is possible thanks to the implementation of technology with much higher accuracy of both bodies and covers, but above all gears (teeth in the 6th accuracy class). Thanks to this, the pumps achieve higher durability with lower weight.

Smaller pump dimensions - the new generation pumps are shorter towards the wheel axles by about 15%. They maintain the same parameters as the 'classic' design.

You don't know which set to choose for yourself? Use the option:Ask the seller a question!Dimension A:

PZ20-PTO.NE-8 - 81 mm

PZ20-PTO.NE-10 - 83 mm

PZ20-PTO.NE-12 - 85 mm

PZ20-PTO.NE-14 - 87 mm

PZ20-PTO.NE-16 - 89 mm

Dimension B:

PZ20-PTO.NE-8 - 55 mm

PZ20-PTO.NE-10 - 55 mm

PZ20-PTO .NE-12 - 55 mm

PZ20-PTO.NE-14 - 59 mm

PZ20-PTO.NE-16 - 59 mm

Gearbox comparison
