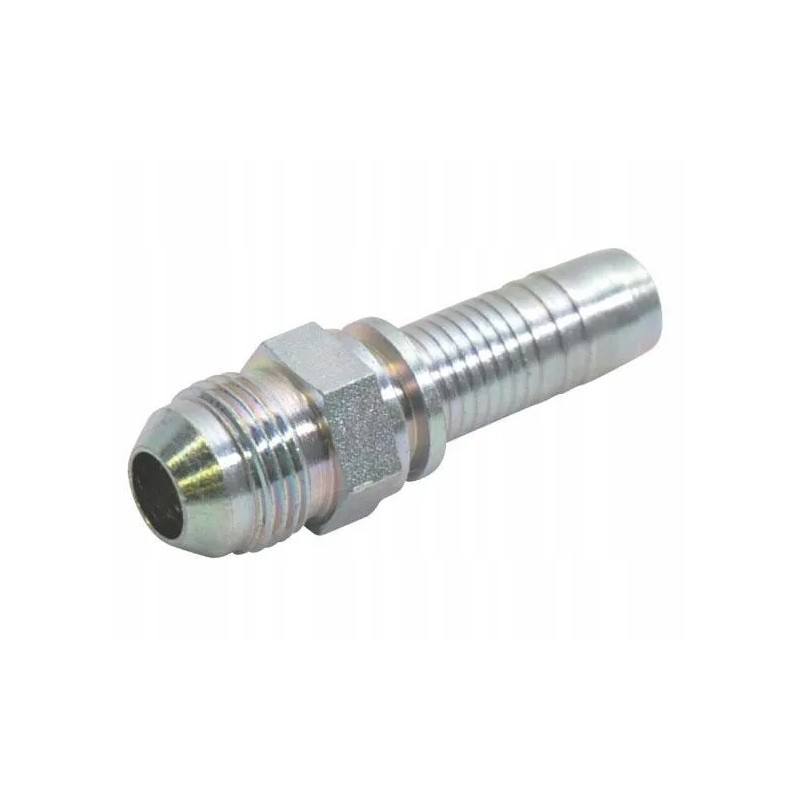

Pc2017 tip dn20 1 1 16 unf

PC2017 End cap DN20-1'1/16 UNFEAN

8719493101324

Product details

Cone seal - metal on metal

Cone angle

37 °

Shape

Straight - 2 sides of connection

Connection type no. 1

Thread

Connector type no. 1 - male/female

Male

Connector type no. 1 - code

AGJ

Diameter Connector Thread

1-1/16 inch

Connector Thread Type

UNF

Wrench Size for Connector No. 1

27.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Male< p>

Connection no. 2 diameter

3/4 inch

Connection no. 2 diameter

20 mm

Dimension from axis of the connector to the bottom of the next connector

39.5 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Connection

JIC male thread (UNF thread) with 74° external cone

Application

Screw connections on the folded edge of the sheet metal
