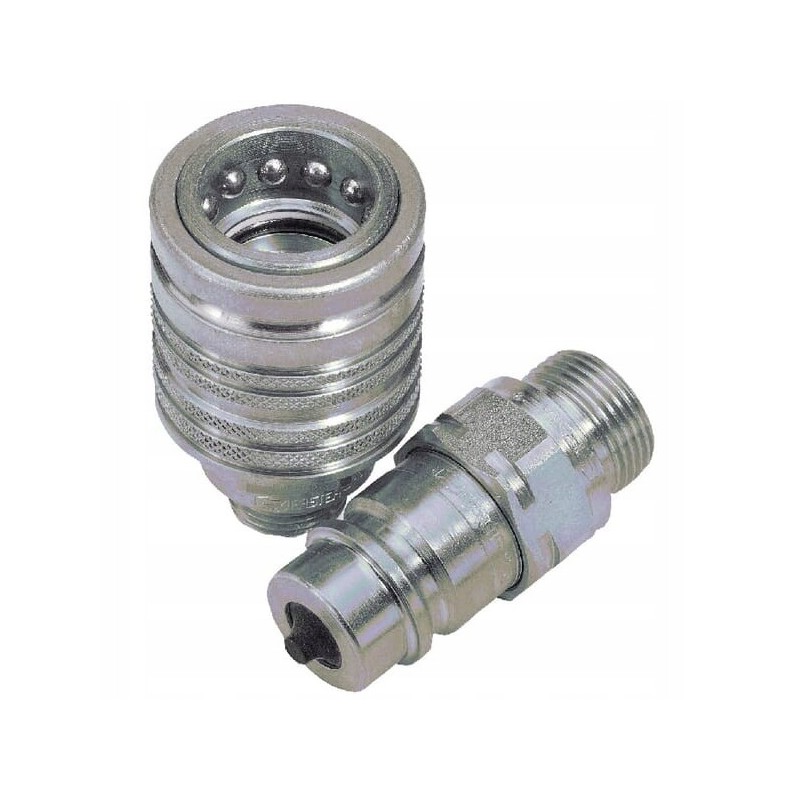

Cpv0838gasf quick connector

Quick connector INDEX: CPV0838GASF

Length: 2.45 inch

Material: Steel

Technical information: - Connection is made by pressing the plug (one-handed operation)

Features: - Push & Pull principle - Axial actuation of the locking sleeve in both directions (double action) - Tear-off function - Induction hardening in places exposed to rapid wear

Valve type: Mushroom valve

Application: - Universal use - Agricultural machinery - Mineral oil-based fluids

Size: 12.5 mm

Outer diameter: 1.5 inch

ISO standard: 7241-A

Connection diameter: 38mm

Surface treatment: Chrome-plated

Seal material: Nitrile rubber [NBR]

Weight: 260.6g

Working pressure: 250BAR

Connector type no. 2 - male/female: Female

Possibility of connecting under pressure: No

Max operating temperature: 125 °C

Min operating temperature: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Press to connect

Connection diameter no. 2: 38mm

Connector no. 2 thread pitch: 1.5mm

Wrench size for connector no. 2: 27mm

Length of connector no. 2: 62.3 mm

Disconnection method: Pull to disconnect

Thread diameter of connector no. 2: M26

Content per sales unit: 20 pcs

Thread type of connector no. : 75l/min

OE reference number: CPV08 38 GAS F

Connector type no. 1 - male/female: Female

Connector no. 1 key size: 27mm
